RDL Technologies - Trainer Kit

Pre-Requisites

• On your system you need to have the following Software installed before executing lab programs.
1. Keil uVision 4 software
2. FTDI driver
3. Flash Magic Utility

install Keil uVision 4

Follow the steps below to install Keil uVision 4 on your system.

1. Run setup file MDK-ARM V4.13a.exe (Double click the file icon).
2. Setup Window appears....

Keil uVision 4

3. Click Next

4. Click Checkbox of agreement in order to proceed and click Next

5. In folder selection window, select suitable directory for the installation and press next (default directory should work fine!)

Keil uVision 4

6. Enter customer information and click next

7.The setup should begin. Setup status window will show installation of different files. Wait until it gets installed completely.

Keil uVision 4

8.Once the installation gets over, message should appear with text “File installation Completed”, Click Next without making any changes anywhere in the window.

9.Next message will confirm “Keil uVision 4 Setup completed”. Click Finish

10.This will lead you to the webpage of Keil Development Suit for ARM. This will provide you release notes for Keil Development kit. This document gives you the brief idea of which microcontrollers are being added in the Keil uVision 4.

11.Run “Keil uVision 4” by double clicking the "Keil uVision 4" icon from the desktop. Same can be done from Start menu.

install FTDI driver

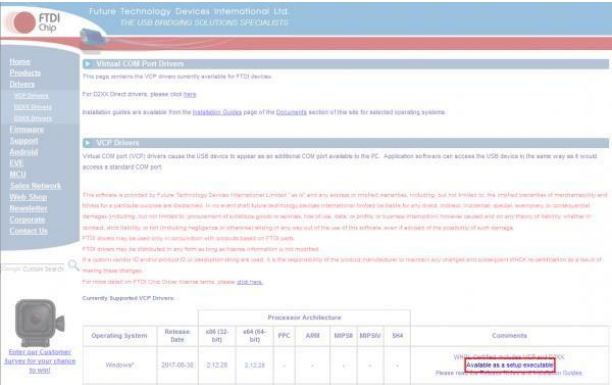

1. Visit FTDI’s VCP Drivers page (http://www.ftdichip.com/Drivers/VCP.htm)for the latest download of the Windows FTDI Driver executable and clicking on the Window’s “Available as a setup executable” link. Make sure to unzip the executable before proceeding to the next step.

2. Choose ‘Run’ once it is has finished downloading, or find the file you just downloaded “CDM21228_Setup.exe”and double-click it to run it.

3. Choose ‘Extract’ and continue through the installation until it finishes.

4. Choose If everything was successful, you should see some nice green check marks, indicating success!

install Flash Magic Utility

1. Visit FlashMagic website http://www.flashmagictool.com/ and download the file FlashMagic.exe
2. Execute the downloaded file FlashMagic.exe, and follow the instructions.
3. Start Flash Magic by selecting it from the Start Menu. In the Flash Magic windows select Options > Advanced Options ... menu item. In the window that appears enable the check box that says Use DTR and RTS to control RST and P0.14, and click on O

When this option is enabled, during code download, the flashing tool will automatically switch the device into ISP mode. For more information on this, see the board user manual.

Library Files (LibFiles)

Basically “LibFiles” contains“system_lpc21xx.c” “.h” files. Before executing lab programs it is important to have this library files in our system as we are going to link our programs to this folder. Place “LibFiles” folder in a common path in all the computers. (ex: C->Documents->ARM->LibFiles)

New Project in Keil µVision4

1. Open the Keil software and select “Project-> New µvision project” as shown below.

2. Browse to your project folder (/Create a folder) and provide the project name and click on save.

3. Once the project is saved a new pop up “Select Device forTarget” opens, Select the controller (NXP:LPC2148) and click on OK.

4. Select the controller (NXP:LPC2148) and click on OK.

5. As LPC2148 needs the startup code, click onYes option to include the LPC21xx Startup file.

6. Create a new file to write the program.

7. Type the code or Copy paste the below code snippet.

8. After typing the code save the file as main.c

9. Add the recently saved file to the project.

10. Add the“main.c” along with system_LPC21xx.c

11.Build the project and fix the compiler errors/warnings if any.

12. Code is compiled with no errors. The .hex file is still not generated. Follow section 4 (how to enable HexFile Generation)

Enable Hex File Generation

1. Click onTarget Options (or right click on “Target 1”and select “Options for Target ‘Target 1’…) to select the option for generating .hex file.

2. Set IROM1 start address as 0x0000.

3. Enable the option to generate the .hex file.

4. Hex file is generated after a rebuild.

5. Check the project folder for the generated .hex file.

Upload Hex file Using Flash Magic

Once the “.hex” file is generated in keil, we need to upload the hex file to the hardware. We use Flash Magic Tool for the same
Open the flash magic software and follow the below steps.
1. Select the IC“LPC2148”from Select Menu.
2. Select the COM Port. Check the device manager for detected Com port. 3. Select Baud rate from 9600-115200
4. Select None [ISP] Option for Interface.
5. Oscillator Frequency 12.000000(12Mhz).
6. Check the Erase blocks used by Hex file option
7. Browse and Select the hex file.
8. Check the Verify After Programming Option.
9. If DTR and RTS are used then go to Options->Advanced Options-> Hardware Config and select the Use DTR and RTS Option.
10.Hit the Start Button to flash the hex file.
11.Once the hex file is flashed, reset the board. Now the controller should run your application code.

Upload Hex file Using Philips Flash Utility

Once the “.hex” file is generated in keil, we need to upload the hex file to the hardware. We use Flash Magic Tool for the same.
Open the flash magic software and follow the below steps.
1. Press theRead Device ID option in the Software. Automatically detects the IC.
2.Select the COM Port. . Check the device manager for detected Com port. 3. Select Baud rate from 9600-115200
4. ClickUse DTR/RTS for Reset and Boot Loader Selection.
5. Check the Erase blocks used by Hex file option.
6.Click Execute Code after Upload.
7. Browse and Select the hex file.
8. Click Upload to Flash.
9. Once the hex file is flashed, reset the board. Now the controller should run your application code.

Lab Programs

Blinking an LED

Aim: Interfacing LED’s with ARM LPC2148.
Description:
Interfacing LED’s with ARM LPC2148.
Hardware Requirement: ARM LPC2148 Trainer Kit, FRC cables, USB A to B cable and 12V 2A Adapter

Program:


#include<LPC21xx.h>
void delay1(int); //define delay function
int main()
{
PINSEL0=0x00000000; //select pins for blinking led
IODIR0=0x00ffffff; //select I/O pins as output
while(1)
{
 IOSET0=0x00ffffff; //sets pins high
 delay1(1000); //gives 1 SEC delay
 IOCLR0=0x00ffffff; //clears pins
 delay1(1000); //gives 1 SEC delay
}
}
/* Delay routine; gives an approximate delay in milliseconds */
void delay1(int d) // delay routine
{
int i;
 while(d)
 {
for(i=0;i<7000;i++){;}
 d--;
 }
 }

Liquid Crystal Display

Aim: Interfacing LCD Display with ARM LPC2148
Description:
To display the message on the LCD screen.
Hardware Requirement: ARM LPC2148 Trainer Kit,FRC cables,USB A to B cable and 12V 2A Power Adapter.

Program:


#include<LPC21xx.h>
#include <lpc214x.h>
  #include <stdint.h>
  #include <stdlib.h>
  #include <stdio.h>
  void delay_ms(uint16_t j) /* Function for delay in milliseconds */
  {
   uint16_t x,i;
  for(i=0;i<j;i++)
  {
   for(x=0; x<6000; x++); /* loop to generate 1 millisecond delay with Cclk = 60MHz */
  }
  }
  void LCD_CMD(char command)
  {
  IO0PIN = ( (IO0PIN & 0xFF0FFFFF) | ((command & 0xF0)<<16) ); /* Upper nibble of command */
  IO0SET = 0x00020000; /* EN = 1 */
  IO0CLR = 0x00010000; /* RS = 0, RW = 0 */
  delay_ms(5);
  IO0CLR = 0x00020000; /* EN = 0, RS and RW unchanged(i.e. RS = RW = 0) */
  delay_ms(5);
  IO0PIN = ( (IO0PIN & 0xFF0FFFFF) | ((command & 0x0F)<<20) ); /* Lower nibble of command */
  IO0SET = 0x00020000; /* EN = 1 */
  IO0CLR = 0x00010000; /* RS = 0, RW = 0 */
  delay_ms(5);
  IO0CLR = 0x00020000; /* EN = 0, RS and RW unchanged(i.e. RS = RW = 0) */
  delay_ms(5);
  }
  void LCD_INIT(void)
  {
  IO0DIR = 0x00FFFFF0; /* P0.20 to P0.23 LCD Data. P0.16,,17 as RS RW and EN */
  delay_ms(20);
  LCD_CMD(0x02); /* Initialize lcd in 4-bit mode */
  LCD_CMD(0x28); /* 2 lines */
  LCD_CMD(0x0C); /* Display on cursor off */
  LCD_CMD(0x06); /* Auto increment cursor */
  LCD_CMD(0x01); /* Display clear */
  LCD_CMD(0x80); /* First line first position */
  }
  void LCD_STRING (char* msg)
  {
  uint8_t i=0;
  while(msg[i]!=0)
  {
  IO0PIN = ( (IO0PIN & 0xFF0FFFFF) | ((msg[i] & 0xF0)<<16) );
  IO0SET = 0x00030000; /* RS = 1, EN = 1 */
  IO0CLR = 0x00000020; /* RW = 0 */
  delay_ms(2);
  IO0CLR = 0x00020000; /* EN = 0, RS and RW unchanged(i.e. RS = 1, RW = 0) */
  delay_ms(5);
  IO0PIN = ( (IO0PIN & 0xFF0FFFFF) | ((msg[i] & 0x0F)<<20) );
  IO0SET = 0x00030000; /* RS = 1, EN = 1 */
  IO0CLR = 0x00000020; /* RW = 0 */
  delay_ms(2);
  IO0CLR = 0x00020000; /* EN = 0, RS and RW unchanged(i.e. RS = 1, RW = 0) */
  delay_ms(5);
  i++;
  }
  }
  void LCD_CHAR (char msg)
  {
  IO0PIN = ( (IO0PIN & 0xFF0FFFFF) | ((msg & 0xF0)<<16) );
  IO0SET = 0x00030000; /* RS = 1, EN = 1 */
  IO0CLR = 0x00000020; /* RW = 0 */
  delay_ms(2);
  IO0CLR = 0x00020000; /* EN = 0, RS and RW unchanged(i.e. RS = 1, RW = 0) */
  delay_ms(5);
  IO0PIN = ( (IO0PIN & 0xFF0FFFFF) | ((msg & 0x0F)<<20) );
  IO0SET = 0x00030000; /* RS = 1, EN = 1 */
  IO0CLR = 0x00000020; /* RW = 0 */
  delay_ms(2);
  IO0CLR = 0x00020000; /* EN = 0, RS and RW unchanged(i.e. RS = 1, RW = 0) */
  delay_ms(5);
  }
  int main(void)
  {
  LCD_INIT();
  LCD_STRING("--- RDL---");
  LCD_CMD(0xC0);
  LCD_STRING(" LCD DISPLAY");
  return 0;
  }

ADC

Aim: Interfacing ADC with ARM LPC2148.
Description:
To learn how to read ADC Values and display the values in the LCD.
Hardware Requirement: ARM LPC2148 Trainer Kit,FRC cables,USB A to B cable and 12V 2A Power Adapter

Program


#include<lpc214x.h>
#include<stdint.h>
#include<stdlib.h>
#include<stdio.h>
#include<stdint.h>
#include<stdio.h>
#include<string.h>


void delay_ms(uint16_t j) /* Function for delay in milliseconds */
{
 uint16_t x,i;
for(i=0;i<j;i++)
{
 for(x=0; x<6000; x++); /* loop to generate 1 millisecond delay with Cclk = 60MHz */
}
}
void LCD_CMD(char command)
{
IO0PIN = ( (IO0PIN & 0xFF0FFFFF) | ((command & 0xF0)<<16) ); /* Upper nibble of command */
IO0SET = 0x00020000; /* EN = 1 */
IO0CLR = 0x00010000; /* RS = 0, RW = 0 */
delay_ms(5);
IO0CLR = 0x00020000; /* EN = 0, RS and RW unchanged(i.e. RS = RW = 0) */
delay_ms(5);
IO0PIN = ( (IO0PIN & 0xFF0FFFFF) | ((command & 0x0F)<<20) ); /* Lower nibble of command */
IO0SET = 0x00020000; /* EN = 1 */
IO0CLR = 0x00010000; /* RS = 0, RW = 0 */
delay_ms(5);
IO0CLR = 0x00020000; /* EN = 0, RS and RW unchanged(i.e. RS = RW = 0) */
delay_ms(5);
}
void LCD_INIT(void)
{
IO0DIR = 0x00FFFFF0; /* P0.12 to P0.15 LCD Data. P0.4,5,6 as RS RW and EN */
delay_ms(20);
LCD_CMD(0x02); /* Initialize lcd in 4-bit mode */
LCD_CMD(0x28); /* 2 lines */
LCD_CMD(0x0C); /* Display on cursor off */
LCD_CMD(0x06); /* Auto increment cursor */
LCD_CMD(0x01); /* Display clear */
LCD_CMD(0x80); /* First line first position */
}
void LCD_STRING (char* msg)
{
uint8_t i=0;
while(msg[i]!=0)
{
IO0PIN = ( (IO0PIN & 0xFF0FFFFF) | ((msg[i] & 0xF0)<<16) );
IO0SET = 0x00030000; /* RS = 1, EN = 1 */
IO0CLR = 0x00000020; /* RW = 0 */
delay_ms(2);
IO0CLR = 0x00020000; /* EN = 0, RS and RW unchanged(i.e. RS = 1, RW = 0) */
delay_ms(5);
IO0PIN = ( (IO0PIN & 0xFF0FFFFF) | ((msg[i] & 0x0F)<<20) );
IO0SET = 0x00030000; /* RS = 1, EN = 1 */
IO0CLR = 0x00000020; /* RW = 0 */
delay_ms(2);
IO0CLR = 0x00020000; /* EN = 0, RS and RW unchanged(i.e. RS = 1, RW = 0) */
delay_ms(5);
i++;
}
}
void LCD_CHAR (char msg)
{
IO0PIN = ( (IO0PIN & 0xFF0FFFFF) | ((msg & 0xF0)<<16) );
IO0SET = 0x00030000; /* RS = 1, EN = 1 */
IO0CLR = 0x00000020; /* RW = 0 */
delay_ms(2);
IO0CLR = 0x00020000; /* EN = 0, RS and RW unchanged(i.e. RS = 1, RW = 0) */
delay_ms(5);
IO0PIN = ( (IO0PIN & 0xFF0FFFFF) | ((msg & 0x0F)<<20) );
IO0SET = 0x00030000; /* RS = 1, EN = 1 */
IO0CLR = 0x00000020; /* RW = 0 */
delay_ms(2);
IO0CLR = 0x00020000; /* EN = 0, RS and RW unchanged(i.e. RS = 1, RW = 0) */
delay_ms(5);
}
/*
int main(void)
{
LCD_INIT();
LCD_STRING("--- RDL---");
LCD_CMD(0xC0);
LCD_STRING(" LCD DISPLAY");
return 0;
} */
 int main(void)
{
uint32_t result;
// float voltage;
char volt[18];
// LCD_CMD(0xC0);
// LCD_STRING(" LCD DISPLAY");
LCD_INIT();
PINSEL1 = 0x01000000; /* P0.28 as AD0.1 */
AD0CR = 0x00200402; /* ADC operational, 10-bits, 11 clocks for conversion */
LCD_STRING("--- RDL1---");
while(1)
{
AD0CR = AD0CR | (1<<24); /* Start Conversion */
while ( !(AD0DR1 & 0x80000000) ); /* Wait till DONE */
result = AD0DR1;
result = (result>>6);
result = (result & 0x000003FF);
// voltage = ( (result/1023.0) * 3.3 ); /* Convert ADC value to equivalent voltage */
LCD_CMD(0xc0);
// sprintf(volt, "Voltage=%.2f V ", voltage);
sprintf(volt, "ADC=%i ", result);
LCD_STRING(volt);
memset(volt, 0, 18);
}
}

UART

Aim:Interfacing UART with ARM LPC2148
Description:
Transmit/Receive Data using UART and display the data’s on the terminal Software.
Hardware Requirement: ARM LPC2148 Trainer Kit , USB A to B Cable and 12V 2A Power Adapter.

Program


#include<lpc214x.h>
#include<stdint.h>
#include "UART.h"

int main(void)
{
char receive;
UART0_init();
while(1)
{
 receive = UART0_RxChar();
 UART0_SendString("Received:");
 UART0_TxChar(receive);
 UART0_SendString("\r\n");
}
}

RTC (Real Time Clock)

Aim:Interfacing Real Time Clock with ARM LPC2148
Description:
To transmit Date and Time using UART and display the data’s on the terminal Software.
Hardware Requirement: ARM LPC2148 Trainer Kit, FRC Cables, USB A to B Cable and 12V 2A Power Adapter.

Program


#include<lpc214x.h>
#include<stdint.h>
#include<stdio.h>
#include "UART0.h"
uint8_t alarm, flag;
__irq void RTC_ISR(void)
{
if (ILR & 0x01)
{
flag = 1;
ILR = ILR | 0x01;
}
if (ILR & 0x02)
{
alarm = 1;
ILR = ILR | 0x02;
}
VICVectAddr = 0;
}
typedef struct
{
uint8_t seconds;
uint8_t minutes;
uint8_t hours;
uint8_t day_of_month;
uint8_t day_of_week;
uint16_t day_of_year;
uint8_t month;
uint16_t year;
}
RTC_Time;
void RTC_Set_Time( RTC_Time Set_Time)
{
SEC = Set_Time.seconds;
MIN = Set_Time.minutes;
HOUR = Set_Time.hours;
DOM = Set_Time.day_of_month;
DOW = Set_Time.day_of_week;
DOY = Set_Time.day_of_year;
MONTH = Set_Time.month;
YEAR = Set_Time.year;
}
void RTC_Set_Alarm_Time( RTC_Time Alarm_Time)
{
ALSEC = Alarm_Time.seconds;
ALMIN = Alarm_Time.minutes;
ALHOUR = Alarm_Time.hours;
ALDOM = Alarm_Time.day_of_month;
ALDOW = Alarm_Time.day_of_week;
ALDOY = Alarm_Time.day_of_year;
ALMON = Alarm_Time.month;
ALYEAR = Alarm_Time.year;
}
RTC_Time RTC_Get_Time(void)
{
RTC_Time time;
time.seconds = SEC;
time.minutes = MIN;
time.hours = HOUR;
time.day_of_month = DOM;
time.day_of_week = DOW;
time.day_of_year = DOY;
time.month = MONTH;
time.year = YEAR;
return time;
}
int main(void)
{
/* Setting Time + Alarm */
RTC_Time set_time, alarm_time, current_time;
char timestr[30], datestr[30];
alarm = 0;
flag = 0;
IO0DIR = 0x00000010; /* P0.4 as output pin for LED */
UART0_init();
PCONP = (PCONP | (1<<9)); /* PCRTC = 1 */
/* The RTC registers cannot be written to unless we make PCRTC = 1 */
ILR = 0x0; /* No RTC interrupts */
CCR = 0x12; /* 32.768kHz clock and Reset Clock Tick Counter */
CCR = 0x10;
CIIR = 0x00; /* No interrupts */
AMR = 0x00; /* Alarm registers not masked */
VICVectAddr0 = (unsigned) RTC_ISR;
VICVectCntl0 = 0x0000002D;
VICIntEnable = 0x00002000;
VICIntSelect = 0x00000000;
set_time.seconds = 00;
set_time.minutes = 25;
set_time.hours = 11;
set_time.day_of_month = 6;
set_time.day_of_week = 5;
set_time.day_of_year = 279;
set_time.month = 10;
set_time.year = 2017;
RTC_Set_Time(set_time);
CIIR = 0x01; /* Seconds value increment interrupt */
alarm_time.seconds = 15;
alarm_time.minutes = 25;
alarm_time.hours = 11;
alarm_time.day_of_month = 6;
alarm_time.day_of_week = 5;
alarm_time.day_of_year = 279;
alarm_time.month = 10;
alarm_time.year = 2017;
RTC_Set_Alarm_Time(alarm_time);
CCR = 0x11; /* 32.768kHz clock and clock Enable */
ILR = 0x03; /* RTC interrupts enabled */
IO0CLR = 0x00000010;
/* Set the Time and Alarm once using above code lines */
/* Once the time and alarm is set, comment out the above code lines and uncomment the code
lines for "Only RTC Read" and program the device */
/* If this is not done, the time will be set repeatedly to same value whenever the device is reset or
powered */
/* Only RTC Read */
// RTC_Time current_time;
// char timestr[30], datestr[30];
// alarm = 0;
// flag = 0;
// IO0DIR = 0x00000010; /* P0.4 as output pin for LED */
// UART0_init();
// AMR = 0x00; /* Alarm registers not masked */
// CCR = 0x10;
// VICVectAddr0 = (unsigned) RTC_ISR;
// VICVectCntl0 = 0x0000002D;
// VICIntEnable = 0x00002000;
// VICIntSelect = 0x00000000;
// CCR = 0x11; /* 32.768kHz clock and clock enable */
// ILR = 0x03; /* RTC interrupts enabled */
// IO0CLR = 0x00000010;
 /* Code lines below are common for "Setting time + Alarm" as well as "Only RTC Read" */
while(1)
{
if(alarm == 1)
{
current_time = RTC_Get_Time();
sprintf(timestr,"Alarm!!!: %d:%d:%d
\r\n",current_time.hours,current_time.minutes,current_time.seconds);
UART0_SendString(timestr);
uint8_t i;
for(i=0;i<10;i++)
{
IO0SET = 0x00000010;
delay_ms(300);
IO0CLR = 0x00000010;
delay_ms(300);
}
alarm = 0;
}
if (flag == 1)
{
current_time = RTC_Get_Time();
sprintf(timestr,"Time: %d:%d:%d
",current_time.hours,current_time.minutes,current_time.seconds);
sprintf(datestr,"Date: %d/%d/%d
\r\n",current_time.day_of_month,current_time.month,current_time.year);
UART0_SendString(timestr);
UART0_SendString(datestr);
flag = 0;
}
}
}

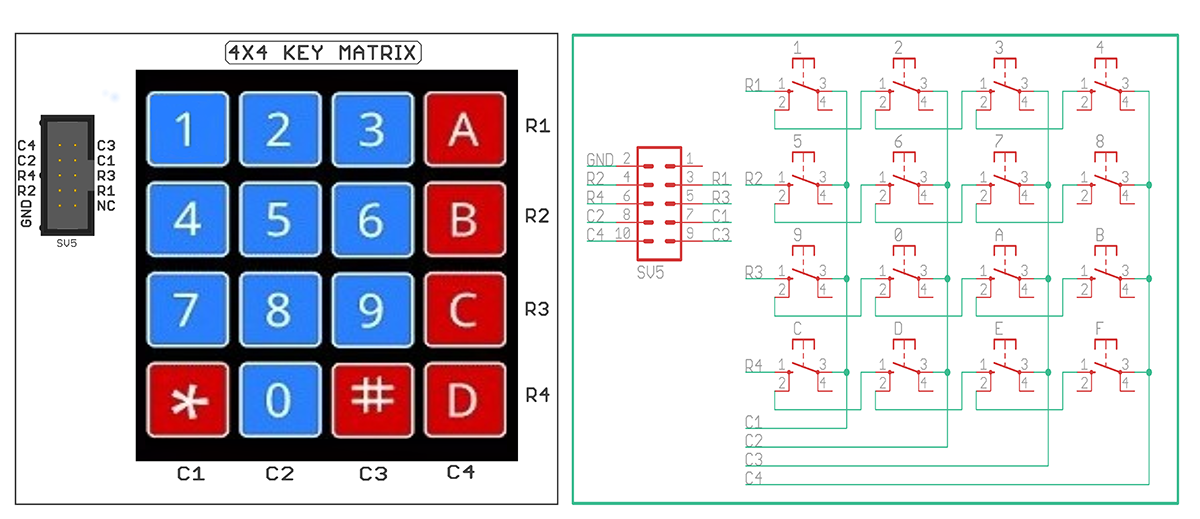

Hex Keypad

Aim:To interface 4x4 Hex keypad with ARM LPC2148.
Description:
To display the pressed key on the LCD Display
Hardware Requirement: ARM LPC2148 Trainer Kit, FRC Cables, USB A to B Cable and 12V 2A Power Adapter.

Program


#include<lpc214x.h>
#include<stdint.h>
#include<stdlib.h>
#include<stdio.h>
#include<string.h>
unsigned int adc_value1,adc_value2,C;
unsigned char buf[16] = {0};
char check_key(void);
unsigned int KeyPort=0x00f00000;
#define sw1 0x00010000
#define sw2 0x00020000
#define sw3 0x00040000
#define sw4 0x00080000
void delay_ms(uint16_t j) /* Function for delay in milliseconds */
{
 uint16_t x,i;
for(i=0;i<j;i++)
{
 for(x=0; x<6000; x++); /* loop to generate 1 millisecond delay with Cclk = 60MHz */
}
}
void LCD_CMD(char command)
{
IO0PIN = ( (IO0PIN & 0xFF0FFFFF) | ((command & 0xF0)<<16) ); /* Upper nibble of command */
IO0SET = 0x00020000; /* EN = 1 */
IO0CLR = 0x00010000; /* RS = 0, RW = 0 */
delay_ms(5);
IO0CLR = 0x00020000; /* EN = 0, RS and RW unchanged(i.e. RS = RW = 0) */
delay_ms(5);
IO0PIN = ( (IO0PIN & 0xFF0FFFFF) | ((command & 0x0F)<<20) ); /* Lower nibble of command */
IO0SET = 0x00020000; /* EN = 1 */
IO0CLR = 0x00010000; /* RS = 0, RW = 0 */
delay_ms(5);
IO0CLR = 0x00020000; /* EN = 0, RS and RW unchanged(i.e. RS = RW = 0) */
delay_ms(5);
}
void LCD_INIT(void)
{
IO0DIR = 0x00FFFFF0; /* P0.20 to P0.23 LCD Data. P0.16,,17 as RS RW and EN */
delay_ms(20);
LCD_CMD(0x02); /* Initialize lcd in 4-bit mode */
LCD_CMD(0x28); /* 2 lines */
LCD_CMD(0x0C); /* Display on cursor off */
LCD_CMD(0x06); /* Auto increment cursor */
LCD_CMD(0x01); /* Display clear */
LCD_CMD(0x80); /* First line first position */
}
void LCD_STRING (char* msg)
{
uint8_t i=0;
while(msg[i]!=0)
{
IO0PIN = ( (IO0PIN & 0xFF0FFFFF) | ((msg[i] & 0xF0)<<16) );
IO0SET = 0x00030000; /* RS = 1, EN = 1 */
IO0CLR = 0x00000020; /* RW = 0 */
delay_ms(2);
IO0CLR = 0x00020000; /* EN = 0, RS and RW unchanged(i.e. RS = 1, RW = 0) */
delay_ms(5);
IO0PIN = ( (IO0PIN & 0xFF0FFFFF) | ((msg[i] & 0x0F)<<20) );
IO0SET = 0x00030000; /* RS = 1, EN = 1 */
IO0CLR = 0x00000020; /* RW = 0 */
delay_ms(2);
IO0CLR = 0x00020000; /* EN = 0, RS and RW unchanged(i.e. RS = 1, RW = 0) */
delay_ms(5);
i++;
}
}
void LCD_CHAR (char msg)
{
IO0PIN = ( (IO0PIN & 0xFF0FFFFF) | ((msg & 0xF0)<<16) );
IO0SET = 0x00030000; /* RS = 1, EN = 1 */
IO0CLR = 0x00000020; /* RW = 0 */
delay_ms(2);
IO0CLR = 0x00020000; /* EN = 0, RS and RW unchanged(i.e. RS = 1, RW = 0) */
delay_ms(5);
IO0PIN = ( (IO0PIN & 0xFF0FFFFF) | ((msg & 0x0F)<<20) );
IO0SET = 0x00030000; /* RS = 1, EN = 1 */
IO0CLR = 0x00000020; /* RW = 0 */
delay_ms(2);
IO0CLR = 0x00020000; /* EN = 0, RS and RW unchanged(i.e. RS = 1, RW = 0) */
delay_ms(5);
}
int main(void)
{
 IODIR1=KeyPort;
LCD_INIT();
LCD_STRING("--- RDL---");
LCD_CMD(0xC0);
while(1)
{
delay_ms(5);
LCD_CHAR(check_key());
}
}
// IODIR0=0X0007ffCF0;
char check_key(void)
{
while(1)
{
 //
IOSET1=0x00EF0000;
 delay_ms(5);
if((IOPIN1&sw1)==0)
{
C='1';
while((IOPIN1&sw1)==0);
return(C);
}
if((IOPIN1&sw2)==0)
{
C='5';
while((IOPIN1&sw2)==0);
return(C);
}
if((IOPIN1&sw3)==0) {
  C='9';
  while((IOPIN1&sw3)==0);
  return(C); }
  if((IOPIN1&sw4)==0) {
  C='C';
  while((IOPIN1&sw4)==0);
  return(C); }
  IOCLR1=0x00EF0000;
  delay_ms(5);
  IOSET1=0x00DF0000;
  delay_ms(5);
  if((IOPIN1&sw1)==0) {
  C='2';
  while((IOPIN1&sw1)==0);
  return(C); }
  if((IOPIN1&sw2)==0) {
  C='6';
  while((IOPIN1&sw2)==0);
  return(C); }
  if((IOPIN1&sw3)==0) {
  C='0';
  while((IOPIN1&sw3)==0);
  return(C); }
  if((IOPIN1&sw4)==0) {
  C='D';
  while((IOPIN1&sw4)==0);
  return(C);
}
IOCLR1=0x00DF0000;
delay_ms(5);
IOSET1=0x00BF0000;
delay_ms(5);
if((IOPIN1&sw1)==0) {
C='3';
while((IOPIN1&sw1)==0);
return(C); }
if((IOPIN1&sw2)==0) {
C='7';
while((IOPIN1&sw2)==0);
return(C); }
if((IOPIN1&sw3)==0) {
C='A';
while((IOPIN1&sw3)==0);
return(C); }
if((IOPIN1&sw4)==0) {
C='E';
while((IOPIN1&sw4)==0);
return(C); }
IOCLR1=0x00BF0000;
delay_ms(5);
IOSET1=0x007F0000;
delay_ms(5);
if((IOPIN1&sw1)==0) {
C='4';
while((IOPIN1&sw1)==0);
return(C); }
if((IOPIN1&sw2)==0) {
C='8';
while((IOPIN1&sw2)==0);
return(C);
}
if((IOPIN1&sw3)==0)
{
C='B';
while((IOPIN1&sw3)==0);
return(C);
}
if((IOPIN1&sw4)==0)
{
C='F';
while((IOPIN1&sw4)==0);
return(C);
}
IOCLR1=0x007F0000;
delay_ms(5);
}
}

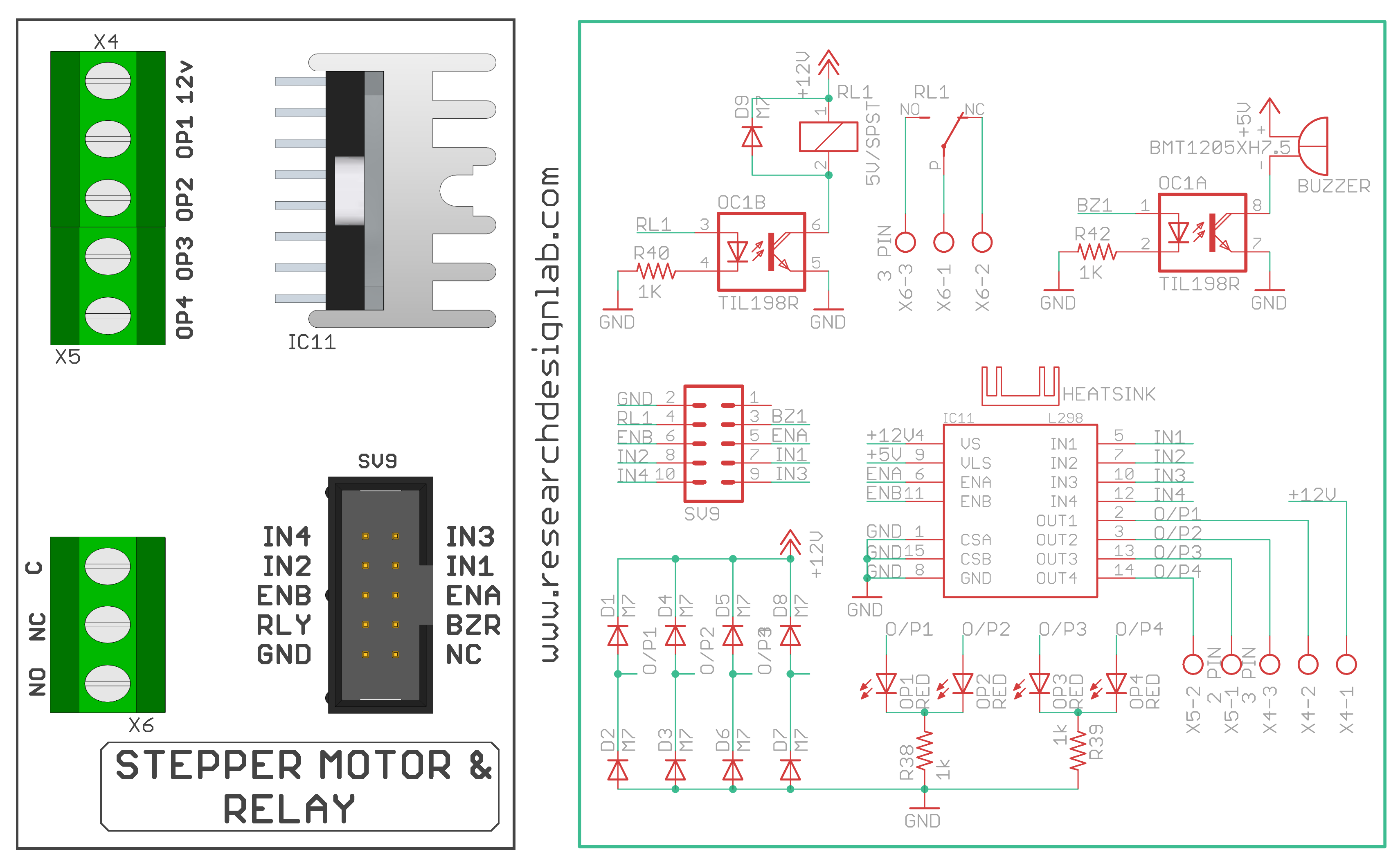

Stepper Motor

Aim:To interface Stepper Motor with ARM LPC2148
Description:
To rotate Stepper Motor using ARM LPC2148.
Hardware Requirement: ARM LPC2148 Trainer Kit, Stepper Motor, FRC Cables, USB A to B Cable and 12V 2A Power Adapter.

Code


#include<LPC21xx.h>
void _delay_ms(int j)
{
int x,l;
for(l=0;l<j;l++)
{
 for(x=0; x<6000; x++); /* loop to generate 1 milisecond delay with Cclk = 60MHz */
}
}
int main()
{
int i=0;
PINSEL0=0x00000000; //select pins for blinking led
IODIR0=0x00ff0000; //select I/O pins as output
while(1)
{
for(i=0;i<100;i++)
{
IOSET0 = 0x00EC0000;
_delay_ms(4);
IOCLR0 = 0x00EC0000;
IOSET0 = 0x00DC0000;
_delay_ms(4);
IOCLR0=0x00DC0000;
IOSET0 = 0x00BC0000;
_delay_ms(4);
IOCLR0=0x00BC0000;
IOSET0 = 0x007C0000;
_delay_ms(4);
IOCLR0=0x007C0000;
}
for(i=0;i<100;i++)
{
IOSET0 = 0x007C0000;
_delay_ms(4);
IOCLR0=0x007C0000;
IOSET0 = 0x00BC0000;
_delay_ms(4);
IOCLR0=0x00BC0000;
IOSET0 = 0x00DC0000;
_delay_ms(4);
 IOCLR0=0x00DC0000;
IOSET0 = 0x00EC0000;
_delay_ms(4);
IOCLR0=0x00EC0000;
}
}
}
/* Delay routine;gives an approximate delay in milliseconds */

PWM

Aim:To interface PWM with ARM LPC2148.
Description:
To control the Brightness of the LED through PWM using ARM LPC2148.
Hardware Requirement: ARM LPC2148 Trainer Kit, FRC Cables, USB A to B Cable and 12V 2A Power Adapter

Program


#include <lpc214x.h>
#define PLOCK 0x00000400
#define PWMPRESCALE 60 //60 PCLK cycles to increment TC by 1 i.e 1 Micro-second
void initPWM(void);
void initClocks(void);
void setupPLL0(void);
void feedSeq(void);
void connectPLL0(void);
void delay_ms(int j) /* Function for delay in milliseconds */
{
 int x,i;
for(i=0;i<j;i++)
{
 for(x=0; x<6000; x++); /* loop to generate 1 millisecond delay with Cclk = 60MHz */
}
}
int DUTY=0;
int main(void)
{
initClocks(); //Initialize CPU and Peripheral Clocks @ 60Mhz
initPWM(); //Initialize PWM
//IO0DIR = 0x1; This is not needed!
//Also by default all pins are configured as Inputs after MCU Reset.
IO0DIR = 0x01;

 while(1)
 {
for(DUTY=0;DUTY<10000;DUTY++)
{
PWMMR1 = DUTY; //25% Bright
PWMLER = (1<<1);
delay_ms(1);
}
/* if( ((IO0PIN) & (1<<2)) ) // Check P0.2
{
PWMMR1 = 2500; //25% Bright
PWMLER = (1<<1);
}
else if( ((IO0PIN) & (1<<3)) ) // Check P0.3
{
PWMMR1 = 5000; //50% Bright
PWMLER = (1<<1);
}
else if( ((IO0PIN) & (1<<4)) ) // Check P0.4
{
PWMMR1 = 7500; //75% Bright
PWMLER = (1<<1);
}
else if( ((IO0PIN) & (1<<5)) ) // Check P0.5
{
PWMMR1 = 10000; //T-ON=100% , Hence 25% Bright
PWMLER = (1<<1); //Update Latch Enable bit for PWMMR1
} */
 }
 //return 0; //normally this wont execute ever
}
void initPWM(void)
{
/*Assuming that PLL0 has been setup with CCLK = 60Mhz and PCLK also = 60Mhz.*/
/*This is a per the Setup & Init Sequence given in the tutorial*/
PINSEL0 = 0x00000002; //SELECT PIN Select 0 FOR PWM1(P0.0)
//PINSEL0 = (1<<1); // Select PWM1 output for Pin0.0
PWMPCR = 0x0; //Select Single Edge PWM - by default its single Edged so this line can be removed
PWMPR = PWMPRESCALE-1; // 1 micro-second resolution
PWMMR0 = 10000; // 10ms period duration
PWMMR1 = 2500; // 2.5ms - pulse duration i.e width (Brigtness level)
PWMMCR = (1<<1); // Reset PWMTC on PWMMR0 match
PWMLER = (1<<1) | (1<<0); // update MR0 and MR1
PWMPCR = (1<<9); // enable PWM output
PWMTCR = (1<<1) ; //Reset PWM TC & PR
//Now , the final moment - enable everything
PWMTCR = (1<<0) | (1<<3); // enable counters and PWM Mode
//PWM Generation goes active now
//Now you can get the PWM output at Pin P0.0!
}
void initClocks(void)
{
 setupPLL0();
 feedSeq(); //sequence for locking PLL to desired freq.
 connectPLL0();
 feedSeq(); //sequence for connecting the PLL as system clock

 //SysClock is now ticking @ 60Mhz!

 VPBDIV = 0x01; // PCLK is same as CCLK i.e 60Mhz
 //PLL0 Now configured!
}
//---------PLL Related Functions :---------------
void setupPLL0(void)
{
 //Note : Assuming 12Mhz Xtal is connected to LPC2148.

 PLL0CON = 0x01; // PPLE=1 & PPLC=0 so it will be enabled
 // but not connected after FEED sequence
 PLL0CFG = 0x24; // set the multipler to 5 (i.e actually 4)
 // i.e 12x5 = 60 Mhz (M - 1 = 4)!!!
 // Set P=2 since we want FCCO in range!!!
 // So , Assign PSEL =01 in PLL0CFG as per the table.
}
void feedSeq(void)
{
 PLL0FEED = 0xAA;
 PLL0FEED = 0x55;
}
void connectPLL0(void)
{
 // check whether PLL has locked on to the desired freq by reading the lock bit
 // in the PPL0STAT register
 while( !( PLL0STAT & PLOCK ));
 // now enable(again) and connect
 PLL0CON = 0x03;
}

EEPROM

Aim:To interface EEPROM with ARM LPC2148.
Description:
Transmit EEPROM Data using UART and display the data’s on the terminal Software.
Hardware Requirement: ARM LPC2148 Trainer Kit, FRC Cables, USB A to B Cable and 12V 2A Power Adapter

Program


#include <LPC214x.h>
void I2C_init(void);
void byte_write(unsigned char address, unsigned char location, unsigned char data);
void send_start(void);
void send_stop(void);
unsigned char byte_read(unsigned char address,unsigned char location);
void msdelay(unsigned int time);
void uart0Init(void)
{
 // port 0 tx P0.1 and rx P0.0 selected
 U0LCR=0x83; //8bit data, no parity, 1 stop bit
 U0DLL=97;// 9600 baud rate @15Mhz Pclk
 U0LCR=0x03;// DLAB=0
}
void uart0Putch(unsigned char ch)
{
 U0THR=ch; // Transmitter holding register
 while(!(U0LSR & 0x20));// wait still THR=0
}
void UART0_Txstring(unsigned char *Str)
{
int i=0;
while(Str[i]!='\0')
{
 uart0Putch(Str[i]);
 i++;
}
}
int main()
{
 int i;
 unsigned char read_data;
 unsigned char
write_data[10]="KANWAL";//{0x41,0x42,0x43,0x44,0x45,0x46,0x47,0x48,0x49,0x4A};
 PINSEL0=0x00000055;
 PINSEL1=0x00000000;
 PINSEL2=0x00000000;
uart0Init();
 I2C_init();
// LCD_writestring("Writing from I2C");
UART0_Txstring("Writing from I2C");
 for(i=0;i<10;i++)
 {
 byte_write(0xA0,i,write_data[i]);
 uart0Putch(write_data[i]);

 msdelay(100);
 }
 // LCD_cmd(0xC0);
 uart0Putch(0x0d);
 UART0_Txstring("reading from I2C : ");
 for(i=0;i<6;i++)
 {
 read_data=byte_read(0xA0,i);
 uart0Putch(read_data);
 // LCD_data(read_data);
 }
}
void I2C_init(void)
{
 I2C0CONCLR=0xFF;
 I2C0CONSET=0x40; //enable I2C
 I2C0SCLH=75; //0x4B
 I2C0SCLL=75; //0x4B
}
void byte_write(unsigned char address, unsigned char location, unsigned char data)
{
 I2C0CONCLR=0xFF;
 I2C0CONSET=0x40;

 send_start(); //send start condition
 while(!(I2C0CONSET&0x08)); //check SI flag
 I2C0CONCLR=0x28; //clear SI flag and start
 I2C0DAT=address&0xFE; //selecting address in
 while(!(I2C0CONSET&0x08)); //check SI flag
 I2C0CONCLR=0x28; //clear SI flag and start
 I2C0DAT=location; //sending memory location
 while(!(I2C0CONSET&0x08)); //check SI flag
 I2C0CONCLR=0x28; //clear SI flag and start

 I2C0DAT=data;
 while(!(I2C0CONSET&0x08)); //check SI flag
 I2C0CONCLR=0x28; //clear SI flag and start flag

 send_stop(); //send stop bit
}
void send_start()
{
 I2C0CONSET=0x20;
}
void send_stop()
{
 I2C0CONSET=0x10;
}
unsigned char byte_read(unsigned char address,unsigned char location)
{
 unsigned char data;
 I2C0CONCLR=0xFF;
 I2C0CONSET=0x40;

 send_start();
 while(!(I2C0CONSET&0x08)); //check SI flag
 I2C0CONCLR=0x28; //clear SI flag and start
 I2C0DAT=address&0xFE; //selecting address in
 while(!(I2C0CONSET&0x08)); //check SI flag
 I2C0CONCLR=0x28; //clear SI flag and start
 I2C0DAT=location; //sending memory location
 while(!(I2C0CONSET&0x08)); //check SI flag
 I2C0CONCLR=0x28; //clear SI flag and start
 send_start(); //repeated start
 while(!(I2C0CONSET&0x08)); //check SI flag
 I2C0CONCLR=0x28;
 I2C0DAT=address|0x01;
 while(!(I2C0CONSET&0x08)); //check SI flag
 I2C0CONCLR=0x28;
 I2C0CONCLR=0x04; //NACK

 while(!(I2C0CONSET&0x08)); //check SI flag
 I2C0CONCLR=0x28;
 data=I2C0DAT;
 send_stop();

 return data;
}
void msdelay(unsigned int time)
{
 int i,j;
 for(i=0;i<time;i++)
 {
 for(j=0;j<1008;j++)
 {
 }

Arithmetic Operation

Aim:To do arithmetic operations with ARM LPC2148.
Description:
Send Arithmetic operator and numbers in tera term and its result will be displayed in teraterm.
Hardware Requirement: ARM LPC2148 Trainer Kit, RS232 cable, USB A to B Cable and 12V 2A Power Adapter.

Code



In main.c
#include <stdio.h> /* prototype declarations for I/O functions */
#include <LPC214x.H> /* LPC21xx definitions */
#include "Serial.h"
#define UART0_TEXT "\n\r RDL TECHNOLOGIES PVT LTD ... Arithmetic Operations"
void delay(int count)
{
int j=0,i=0;
for(j=0;j<count;j++)
{
/* At 60Mhz, the below loop introduces
delay of 10 us */
for(i=0;i<35;i++);
}
}
/* Function to convert a string to an integer */
int atoi(char *str) {
int num = 0;
while (*str) {
num = num * 10 + (*str - '0');
str++;
}
return num;
}
/* Function to perform arithmetic operations */
void perform_operation(char operation, int num1, int num2)
{
int result;
char buffer[100];
switch(operation) {
  case '+':
result = num1 + num2;
sprintf(buffer, "Result: %d + %d = %d\n\r", num1, num2, result);
break;
case '-':
result = num1 - num2;
sprintf(buffer, "Result: %d - %d = %d\n\r", num1, num2, result);
break;
case '*':
result = num1 * num2;
sprintf(buffer, "Result: %d * %d = %d\n\r", num1, num2, result);
break;
case '/':
if (num2 != 0) {
result = num1 / num2;
sprintf(buffer, "Result: %d / %d = %d\n\r", num1, num2, result);
} else {
sprintf(buffer, "Error: Division by zero\n\r");
}
break;
default:
sprintf(buffer, "Error: Invalid operation\n\r");
break;
}
uart0_puts(buffer);
}
/* Function to read a string from UART */
void uart0_gets(char *buf, int max_len) {
int i = 0;
char ch;
while (i < max_len - 1) {
ch = uart0_getkey(); // Get character from UART
if (ch == '\n' || ch == '\r') {
buf[i] = '\0';
return;
}
buf[i++] = ch;
}
buf[i] = '\0'; // Null-terminate the string
}
int main (void) { /* execution starts here */
char operation;
char num1_str[20], num2_str[20];
int num1, num2;
uart0_init(); // Initialize UART0
while (1) { /* An embedded program does not stop */
uart0_puts(UART0_TEXT);
uart0_puts("\n\rEnter operation (+, -, *, /): ");
operation = uart0_getkey(); // Get operation input
uart0_puts("\n\rEnter first number: ");
uart0_gets(num1_str, sizeof(num1_str)); // Get first number input
num1 = atoi(num1_str); // Convert string to integer
uart0_puts("\n\rEnter second number: ");
uart0_gets(num2_str, sizeof(num2_str)); // Get second number input
num2 = atoi(num2_str); // Convert string to integer
perform_operation(operation, num1, num2); // Perform arithmetic operation
delay(100000); // Delay
}
}
In Serial.c
#include <LPC21xx.H> /* LPC21xx definitions */
#include "Serial.h"
#define CR 0x0D
/* implementation of putchar (also used by printf function to output data) */
int sendchar (int ch) { /* Write character to Serial Port */
if (ch == '\n') {
while (!(U1LSR & 0x20));
U1THR = CR; /* output CR */
}
while (!(U1LSR & 0x20));
return (U1THR = ch);
}
int uart0_getkey (void) { /* Read character from Serial Port */
while (!(U0LSR & 0x01));
return (U0RBR);
}
int uart1_getkey (void) { /* Read character from Serial Port */
while (!(U1LSR & 0x01));
return (U1RBR);
}
void uart1_init()
{
/* initialize the serial interface */
PINSEL0 = 0x00050000; /* Enable RxD1 and TxD1 */
U1LCR = 0x83; /* 8 bits, no Parity, 1 Stop bit */
U1DLL = 97; /* 9600 Baud Rate @ 15MHz VPB Clock */
U1LCR = 0x03; /* DLAB = 0 */
}
void uart1_putc(char c)
{
while(!(U1LSR & 0x20)); // Wait until UART1 ready to send character
U1THR = c; // Send character
}
void uart1_puts(char *p)
{
while(*p) // Point to character
{
uart1_putc(*p++); // Send character then point to next character
}
}
void uart0_init()
{
/* initialize the serial interface */
PINSEL0 = 0x00000005; /* Enable RxD0 and TxD0 */
U0LCR = 0x83; /* 8 bits, no Parity, 1 Stop bit */
U0DLL = 97; /* 9600 Baud Rate @ 15MHz VPB Clock */
U0LCR = 0x03; /* DLAB = 0 */
}
void uart0_putc(char c)
{
while(!(U0LSR & 0x20)); // Wait until UART0 ready to send character
U0THR = c; // Send character
}
void uart0_puts(char *p)
{
while(*p) // Point to character
{
uart0_putc(*p++); // Send character then point to next character
}
}

Logical Operation

Aim:To do logical operations with ARM LPC2148.
Description:
Send logical operator and numbers in tera term and its result will be displayed in teraterm
Hardware Requirement: ARM LPC2148 Trainer Kit, RS232 cable, USB A to B Cable and 12V 2A Power Adapter.

Code


  In main.c
  #include <stdio.h>/* prototype declarations for I/O functions */
  #include <LPC214x.H> /* LPC21xx definitions */
  #include "Serial.h"
  #define UART0_TEXT "\n\r RDL TECHNOLOGIES PVT LTD ... Logical Operations"
  void delay(int count)
  {
  int j=0,i=0;
  for(j=0;j<count;j++)
  {
  /* At 60Mhz, the below loop introduces
  delay of 10 us */
  for(i=0;i<35;i++);
  }
  }
  /* Function to convert a string to an integer */
  int atoi(char *str) {
  int num = 0;
  while (*str) {
  num = num * 10 + (*str - '0');
  str++;
  }
  return num;
  }
  /* Function to perform logical operations */
  void perform_operation(char operation, int num1, int num2)
  {
  int result;
  char buffer[100];
switch(operation) {
case '&': // AND
result = num1 & num2;
sprintf(buffer, "Result: %d & %d = %d\n\r", num1, num2, result);
break;
case '|': // OR
result = num1 | num2;
sprintf(buffer, "Result: %d | %d = %d\n\r", num1, num2, result);
break;
case '~': // NOT (only for num1)
result = ~num1;
sprintf(buffer, "Result: ~%d = %d\n\r", num1, result);
break;
case 'n': // NAND
result = ~(num1 & num2);
sprintf(buffer, "Result: ~( %d & %d ) = %d\n\r", num1, num2, result);
break;
case 'o': // NOR
result = ~(num1 | num2);
sprintf(buffer, "Result: ~( %d | %d ) = %d\n\r", num1, num2, result);
break;
default:
sprintf(buffer, "Error: Invalid operation\n\r");
break;
}
uart0_puts(buffer);
}
/* Function to read a string from UART */
void uart0_gets(char *buf, int max_len) {
int i = 0;
char ch;
while (i < max_len - 1) {
ch = uart0_getkey(); // Get character from UART
if (ch == '\n' || ch == '\r') {
  buf[i] = '\0';
return;
}
buf[i++] = ch;
}
buf[i] = '\0'; // Null-terminate the string
}
int main (void) { /* execution starts here */
char operation;
char num1_str[20], num2_str[20];
int num1, num2;
uart0_init(); // Initialize UART0
while (1) { /* An embedded program does not stop */
uart0_puts(UART0_TEXT);
uart0_puts("\n\rEnter operation (& (AND), | (OR), ~ (NOT), n (NAND), o (NOR)): ");
operation = uart0_getkey(); // Get operation input
uart0_puts("\n\rEnter first number: ");
uart0_gets(num1_str, sizeof(num1_str)); // Get first number input
num1 = atoi(num1_str); // Convert string to integer
if (operation != '~') { // NOT operation requires only one operand
uart0_puts("\n\rEnter second number: ");
uart0_gets(num2_str, sizeof(num2_str)); // Get second number input
num2 = atoi(num2_str); // Convert string to integer
} else {
num2 = 0; // No second operand for NOT operation
}
perform_operation(operation, num1, num2); // Perform logical operation
delay(100000); // Delay
}
}
In Serial.c
#include <LPC21xx.H> /* LPC21xx definitions */
#include "Serial.h"
#define CR 0x0D
/* implementation of putchar (also used by printf function to output data) */
int sendchar (int ch) { /* Write character to Serial Port */
if (ch == '\n') {
while (!(U1LSR & 0x20));
U1THR = CR; /* output CR */
}
while (!(U1LSR & 0x20));
return (U1THR = ch);
}
int uart0_getkey (void) { /* Read character from Serial Port */
while (!(U0LSR & 0x01));
return (U0RBR);
}
int uart1_getkey (void) { /* Read character from Serial Port */
while (!(U1LSR & 0x01));
return (U1RBR);
}
void uart1_init()
{
/* initialize the serial interface */
PINSEL0 = 0x00050000; /* Enable RxD1 and TxD1 */
U1LCR = 0x83; /* 8 bits, no Parity, 1 Stop bit */
U1DLL = 97; /* 9600 Baud Rate @ 15MHz VPB Clock */
U1LCR = 0x03; /* DLAB = 0 */
}
void uart1_putc(char c)
{
while(!(U1LSR & 0x20)); // Wait until UART1 ready to send character
U1THR = c; // Send character
}
void uart1_puts(char *p)
{
while(*p) // Point to character
{
uart1_putc(*p++); // Send character then point to next character
}
}
void uart0_init()
{
/* initialize the serial interface */
PINSEL0 = 0x00000005; /* Enable RxD0 and TxD0 */
U0LCR = 0x83; /* 8 bits, no Parity, 1 Stop bit */
U0DLL = 97; /* 9600 Baud Rate @ 15MHz VPB Clock */
U0LCR = 0x03; /* DLAB = 0 */
}
void uart0_putc(char c)
{
while(!(U0LSR & 0x20)); // Wait until UART0 ready to send character
U0THR = c; // Send character
}
void uart0_puts(char *p)
{
while(*p) // Point to character
{
uart0_putc(*p++); // Send character then point to next character
}
}

Note

ARM Development Board LPC2148 Libraries, User Manuals and Installation guides look into the download section.
Install the Cloud PLC libraries(cloudplc.h) before getting start with coding. Download
Above download link, you will find all the IO functionalities included in the Cloud PLC library.
ARM Development Board LPC2148 In the Arduino IDE, go to the Boards Manager, select the ESP32 board, and ensure that you have selected the board version is 1.0.4.

Note

ARM Development Board LPC2148 Libraries, User Manuals and Installation guides look into the download section.
Install the Cloud PLC libraries(cloudplc.h) before getting start with coding. Download
Above download link, you will find all the IO functionalities included in the Cloud PLC library.
ARM Development Board LPC2148 In the Arduino IDE, go to the Boards Manager, select the ESP32 board, and ensure that you have selected the board version is 1.0.4.

Note

ARM Development Board LPC2148 Libraries, User Manuals and Installation guides look into the download section.
Install the Cloud PLC libraries(cloudplc.h) before getting start with coding. Download
Above download link, you will find all the IO functionalities included in the Cloud PLC library.
ARM Development Board LPC2148 In the Arduino IDE, go to the Boards Manager, select the ESP32 board, and ensure that you have selected the board version is 1.0.4.

Note

ARM Development Board LPC2148 Libraries, User Manuals and Installation guides look into the download section.
Install the Cloud PLC libraries(cloudplc.h) before getting start with coding. Download
Above download link, you will find all the IO functionalities included in the Cloud PLC library.
ARM Development Board LPC2148 In the Arduino IDE, go to the Boards Manager, select the ESP32 board, and ensure that you have selected the board version is 1.0.4.

Note

ARM Development Board LPC2148 Libraries, User Manuals and Installation guides look into the download section.
Install the Cloud PLC libraries(cloudplc.h) before getting start with coding. Download
Above download link, you will find all the IO functionalities included in the Cloud PLC library.
ARM Development Board LPC2148 In the Arduino IDE, go to the Boards Manager, select the ESP32 board, and ensure that you have selected the board version is 1.0.4.

Note

ARM Development Board LPC2148 Libraries, User Manuals and Installation guides look into the download section.
Install the Cloud PLC libraries(cloudplc.h) before getting start with coding. Download
Above download link, you will find all the IO functionalities included in the Cloud PLC library.
ARM Development Board LPC2148 In the Arduino IDE, go to the Boards Manager, select the ESP32 board, and ensure that you have selected the board version is 1.0.4.

Note

ARM Development Board LPC2148 Libraries, User Manuals and Installation guides look into the download section.
Install the Cloud PLC libraries(cloudplc.h) before getting start with coding. Download
Above download link, you will find all the IO functionalities included in the Cloud PLC library.
ARM Development Board LPC2148 In the Arduino IDE, go to the Boards Manager, select the ESP32 board, and ensure that you have selected the board version is 1.0.4.

Note

ARM Development Board LPC2148 Libraries, User Manuals and Installation guides look into the download section.
Install the Cloud PLC libraries(cloudplc.h) before getting start with coding. Download
Above download link, you will find all the IO functionalities included in the Cloud PLC library.
ARM Development Board LPC2148 In the Arduino IDE, go to the Boards Manager, select the ESP32 board, and ensure that you have selected the board version is 1.0.4.

Note

ARM Development Board LPC2148 Libraries, User Manuals and Installation guides look into the download section.
Install the Cloud PLC libraries(cloudplc.h) before getting start with coding. Download
Above download link, you will find all the IO functionalities included in the Cloud PLC library.
ARM Development Board LPC2148 In the Arduino IDE, go to the Boards Manager, select the ESP32 board, and ensure that you have selected the board version is 1.0.4.

Controlling Relay By Bluetooth

• This code sets up an Cloud PLC to control two relays via Bluetooth.
• It initializes the relays as outputs and starts Bluetooth communication with a device name "CPL_Relays."
• In the loop function, it listens for incoming Bluetooth commands to control the relays: "ON1" and "OFF1" for Relay 1, and "ON2" and "OFF2" for Relay 2. It also provides feedback over Bluetooth and prints received commands for debugging.

Code

#include <BluetoothSerial.h>

  // Define the relay pins
  #define RELAY1_PIN 15
  #define RELAY2_PIN 13

  // Create a BluetoothSerial object
  BluetoothSerial SerialBT;

  void setup()
  {
    // Initialize serial communication for debugging
    Serial.begin(115200);

    // Initialize the relay pins as outputs
    pinMode(RELAY1_PIN, OUTPUT);
    pinMode(RELAY2_PIN, OUTPUT);

    // Set the relays to be off initially
    digitalWrite(RELAY1_PIN, LOW);
    digitalWrite(RELAY2_PIN, LOW);

    // Begin serial communication over Bluetooth
    SerialBT.begin("CPL_Relays"); // Bluetooth device name
    Serial.println("Bluetooth device started, you can now pair it with Bluetooth!");
  }

  void loop()
     {
    // Check if data is available on the Bluetooth serial
    if (SerialBT.available())
     {
      // Read the incoming string
      String request = SerialBT.readStringUntil('\n');



 // Print the received string to the Serial Monitor (for debugging)


      Serial.print("Received: ");
      Serial.println(request);

      // Control the relays based on the received command
      if (request.indexOf("ON1") != -1)
      {
        digitalWrite(RELAY1_PIN, HIGH); // Turn Relay 1 on
        SerialBT.println("Relay 1 turned ON");
      }
      else if (request.indexOf("OFF1") != -1)
      {
        digitalWrite(RELAY1_PIN, LOW); // Turn Relay 1 off
        SerialBT.println("Relay 1 turned OFF");
      }
      else if (request.indexOf("ON2") != -1)
      {
        digitalWrite(RELAY2_PIN, HIGH); // Turn Relay 2 on


      SerialBT.println("Relay 2 turned ON");
      }
      else if (request.indexOf("OFF2") != -1)
      {
        digitalWrite(RELAY2_PIN, LOW); // Turn Relay 2 off
        SerialBT.println("Relay 2 turned OFF");
      }
      else
      {
        SerialBT.println("Invalid command");
      }
    }
  }

Note

ARM Development Board LPC2148 Libraries, User Manuals and Installation guides look into the download section.
Install the Cloud PLC libraries(cloudplc.h) before getting start with coding. Download
Above download link, you will find all the IO functionalities included in the Cloud PLC library.
ARM Development Board LPC2148 In the Arduino IDE, go to the Boards Manager, select the ESP32 board, and ensure that you have selected the board version is 1.0.4.

Embedded Webserver

• This program sets up a web server using a Cloud PLC to control two relays through a web interface.
• In the setup function, it initializes serial communication, connects to Wi-Fi, and starts the web server.
• The loop function listens for incoming HTTP requests, parses them to control the relays based on the URL path, and serves a simple HTML page to control the relays.
• It updates the relay states and serves the appropriate HTML based on user interactions with the web page.

Wiring Diagram

ARM Development Board LPC2148

Code

#include <Cloud_PLC.h>

WiFiServer server(80);  // Set web server port number to 80
String header;          // Variable to store the HTTP request
const int relayPin1 = 15;  // Relay pins
const int relayPin2 = 13;  // Relay pins
String relayState1 = "OFF";    // Current state of the relays
String relayState2 = "OFF";

void setup()
{
  Serial.begin(115200);
  pinMode(relayPin1, OUTPUT); // Initialize the relay pins as outputs
  pinMode(relayPin2, OUTPUT);
  digitalWrite(relayPin1, LOW);
  digitalWrite(relayPin2, LOW);

  Cloud_PLC_Config_WIFI("TEST", "12345678");  // Connect to Wi-Fi network
  server.begin();  // Start the server
}
void loop()
{
  WiFiClient client = server.available();   // Listen for incoming clients
  if (client)
  { // If a new client connects,
    Serial.println("New Client.");          // Print a message out in the serial port
    String currentLine = "";                // Make a String to hold incoming data from the client
    while (client.connected())
    { // Loop while the client's connected
      if (client.available())

 { // If there's bytes to read from the client,
        char c = client.read();             // Read a byte, then
        Serial.write(c);                    // Print it out the serial monitor
        header += c;
        if (c == '\n')
        { // If the byte is a newline character
          if (currentLine.length() == 0)


{ // If the current line is blank, you got two newline characters in a row.
            // That's the end of the client HTTP request, so send a response:
            client.println("HTTP/1.1 200 OK");
            client.println("Content-type:text/html");
            client.println("Connection: close");
            client.println();
            // Display the HTML web page
            client.println("<!DOCTYPE html><html>");
            client.println("<head><meta name=\"viewport\" content=\"width=device-width, initial-scale=1\">");
            client.println("<link rel=\"icon\" href=\"data:,\">");
            client.println("<style>body { text-align: center; font-family: Arial; } .button { background-color: #4CAF50; border: none; color: white; padding: 15px 32px; text-align: center; text-decoration: none; display: inline-block; font-size: 16px; margin: 4px 2px; cursor: pointer; } .button2 {background-color: #ff0000;}</style></head>");
            client.println("<body><h1>Cloud PLC Relay Control</h1>");

            client.println("<p>Relay 1 - State " + relayState1 + "</p>");
            if (relayState1 == "OFF")
            {
              client.println("<p><a href=\"/relay1/on\"><button class=\"button\">ON</button></a></p>");
            } else
            {
              client.println("<p><a href=\"/relay1/off\"><button class=\"button button2\">OFF</button></a></p>");
            }
            client.println("<p>Relay 2 - State " + relayState2 + "</p>");
            if (relayState2 == "OFF")
            {
              client.println("<p><a href=\"/relay2/on\"><button class=\"button\">ON</button></a></p>");
            } else
            {
              client.println("<p><a href=\"/relay2/off\"><button class=\"button button2\">OFF</button></a></p>");
            }
            client.println("</body></html>");
            client.println();   // The HTTP response ends with another blank line
            break;  // Break out of the while loop
          }

else
          { // If you got a newline, then clear currentLine
            currentLine = "";
          }
        }
          else if (c != '\r')
        { // If you got anything else but a carriage return character,
          currentLine += c;      // Add it to the end of the currentLine
        }
        // Check if the client request is to turn relay 1 on or off
        if (header.indexOf("GET /relay1/on") >= 0)
        {
          relayState1 = "ON";
          digitalWrite(relayPin1, HIGH);
        } else if (header.indexOf("GET /relay1/off") >= 0)
        {
          relayState1 = "OFF";
          digitalWrite(relayPin1, LOW);
        }
        // Check if the client request is to turn relay 2 on or off
        if (header.indexOf("GET /relay2/on") >= 0)
        {
          relayState2 = "ON";
          digitalWrite(relayPin2, HIGH);
        } else if (header.indexOf("GET /relay2/off") >= 0)
        {
          relayState2 = "OFF";
          digitalWrite(relayPin2, LOW);
        }
      }
    }
    // Clear the header variable
    header = "";
    client.stop();  // Close the connection
    Serial.println("Client disconnected.");
    Serial.println("");
  }
}

Note

ARM Development Board LPC2148 Libraries, User Manuals and Installation guides look into the download section.
Install the Cloud PLC libraries(cloudplc.h) before getting start with coding. Download
Above download link, you will find all the IO functionalities included in the Cloud PLC library.
ARM Development Board LPC2148 In the Arduino IDE, go to the Boards Manager, select the ESP32 board, and ensure that you have selected the board version is 1.0.4.
