RDL889

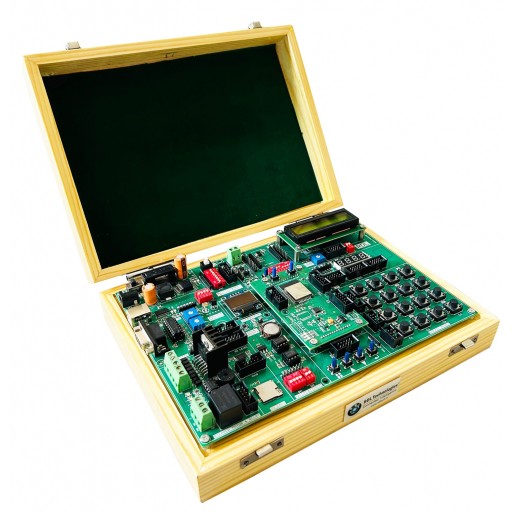

IoT Discovery Kit

IoT Discovery Kit

IoT Discovery Kit

IoT Discovery Board essential development features a plug and play design that makes it easy for connections and helps students, hobbyists, enthusiasts and professionals to focus more on program / application development. IoT Discovery Board equipped with on board IO's communication interfaces & peripherals. It is really easy to design, experiment with and test circuits without soldering. It's used in many educational institutions and R&D LAB across the world.

Features

  •  On Board Programming.
  •  Plug & Play Interface Connectivity.
  •  Professional EMI/RFI Complaint PCB Layout Design.
  •  Modular Block design makes Easy access & quick Prototyping.
  •  FRC connectivity features minimize the connection Error.
  •  ROHS Compliant High Quality Grade PCB with wooden Enclosure.
  •  Open-source Hardware ESP32 dual-core 32-bit up to 240 MHz, Flash 16 MB.
  •  Supported most of the open-source platforms for Custom Programming.
  •  The device offers multiple industrial protocols like MODBUS RTU, MODBUS TCP, JSON, MQTT and FTP and supports secure communication SSL.
  •  Supported most of the cloud platforms including Microsoft Azure & AWS etc.
  •  OTA Firmware upgrade supported.
  •  Supported communication over USB, WiFi, Bluetooth, Modbus RTU & RS232.
  •  Supported DC 12V Power Supply.
  •  High Quality Grade PCB with wooden Enclosure.
  •  On Board Sensor - LDR, Temperature, Gesture & Sound Sensors.
IoT Discovery Kit

APPLICATION

  •  Generic Low power IoT Sensor Hubs.
  •  Cameras for Video Streaming.
  •  Generic Low Power IoT Data logger.
  •  Over-the-top (OTT) Devices.
  •  Speech Recognition.
  •  Image Recognition.
  •  Home Automation.
  •  Smart Building.
  •  Industrial Automation
  •  Smart Agriculture
  •  Audio Applications
  •  Health Care Applications
  •  WiFi enabled Toys
  •  Wearable Electronics
  •  Retail & Catering Applications
IoT Discovery Kit

Scope of Learning Experiments:

  • LED blinking.
  • 8 bit LED Left shift, Right shift and counting operation.
  • Keypad Interrupt Interface 6*2 LCD interface.
  • Matrix Keypad Interface.
  • ADC & DAC interface.
  • Traffic Light Signal Interface.
  • 8 bit DIP switch interface.
  • 7 Segment interface.
  • Multi processing using Dual core ESP32 Interfacing SD card and handling file system with esp32 using SPI and other method.
  • Interfacing sensor with & Data parsing using RESTful & Json protocol.
  • FTP Implementation.
  • Interfacing sensor with ESP32 and MQTT protocol Implementation Exploring MQTT Features Subscribe & Publish methods.
  • MQTT SSL certificate implementation - ESP32.
  • Interfacing RS485 salve using MODBUS protocol.
  • Interfacing BLE & Data parsing using RESTful/Json/MQTT protocol.
  • OTA implementation - ESP32.
  • Implementation of FREE RTOS on ESP32.
  • Gesture (APDS 9960) & Touch Sensor Implementation.
  • Text to speech implementation.
  • Device control through Speech recognition & Alexa Integration.
  • Exploring WiFi- MESH features.
  • BioMedical sensor kit integration and connecting IoT cloud platform for prediction.
  • L298 Driver for DC Motor and Stepper motor interface.
  • Communication using UART, I2C, & SPI Buzzer, Relay interface.
  • RS485, RS232 serial communication.
  • ESP32 IO Interfacing with different sensor RTC DS1307I2C protocol interface.
  • AT24C04 EEPROM I2C protocol interface.
  • Bluetooth Classic, BLE & Wi-Fi Communication.
  • Temperature & Humidity Sensor Interface - AHT21B.
  • Appliance control through cloud platform using MQTT protocol
  • Environment data like temp & humidity capturing using cloud platform
  • Modbus RTU Communication and accessing data from Industrial PLC
  • Wireless TCP/IP socket connection implementation.
  • Snake & Starwar game
  • Exploring OPC / UA server and client Implementation
  • Implementation of ESP32 WEB server application
