Operational Benefits:

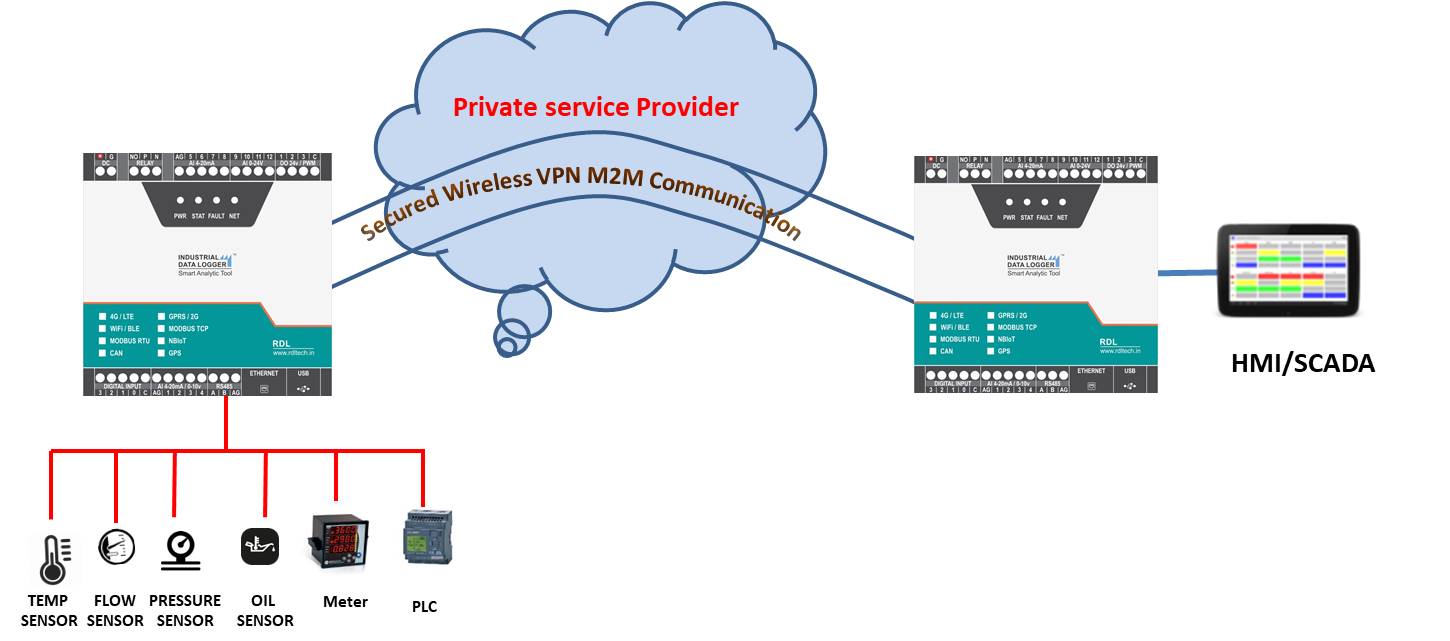

Industrial Data Logger 4.0 can used to build the custom industrial solution for monitoring and controlling PLC and SCADA, HMI, VFD Motors, servo, Valves, energy meter, actuators, relays, encoder, rfid and finger print readers, industrial sensors and many more with below mentioned operational benefits.
- Improved productivity & asset utilization.
- Preventive maintenance.
- Reduced downtime.
- Paperless production environment.
- Performance Forecasting.
- Production count, rejections.
Features:
- 12 x isolated Analog Input Channel 0-10V , 0-24v , 4-20mA.
- 4x isolated Digital input 24V
- 3x Isolated digital output / PWM 24v
- 1x Relay ( NO & C)
- 1x Isolated RS485 for MODBUS RTU communication
- 1x Isolated Ethernet 10/100Mbps MODBUS TCP Communication
- 1x USB-device interface for configuring, monitoring and download
- 1x WiFi / 2G / 4G / LTE wireless communication
- Configure and Read Multiple Slave IDs,Selectable Input Register Holding Register&Coil.
- Configurable Data type and Conversion method (INT ,Long INT , FLOAT , Double Float & RawHex)
- Configurable Scaling factor enabling option for Analog channel .
- Configurable WiFi / GPRS / 4G / LTE Interface
- Configurable data transferring protocol JSON / MQTT and FTP
- Support secure communication SSL
- Custom Configurable polling interval
- Custom Configurable 32 bit counter input
- 8 GB inbuilt storage
- Data Logs and stores its CSV file during network failure
- Logger Sends offline data once Network and Server Connected
- Configurable Live / Schedule upload offline data
- Remote control / Activating Relay / Digital output
- Configurable Alarm
- OTA (Over The Air) Firmware upgrade for WiFi devices.
- LED indicators to indicate Power, Network availability, status & Fault.
- Auto Maintain socket / server connection
- Easy configurable connectivity for cloud platform AWS / Azure / Google / Oracle / Things board
Specification:
|
Isolated Digital inputs
|
|
Number of digital inputs
|
4
|
|
Type of digital input
|
Isolated with Interrupted , WET / DRY connection supported
|
|
Max Input voltage range
|
0-28V
|
|
Logic HIGH trigger voltage
|
>12V
|
|
Logic LOW trigger voltage
|
<10V
|
|
Maximum trigger frequency
|
5Khz
|
|
Protection of digital outputs
|
ESD , Transient
|
|
|
|
|
Isolated Digital outputs
|
|
Number of digital outputs
|
3
|
|
Type of digital output
|
Isolated / PWM
|
|
Output voltage range
|
Open collector output 24V
|
|
Maximum current per output
|
100 mA
|
|
Maximum switching frequency
|
5Khz
|
|
Protection of digital outputs
|
ESD , Transient
|
|
|
|
|
Isolated Switchable Analog inputs
|
|
Number of analog inputs
|
4
|
|
Type of analog inputs
|
Isolated 3700 Vrms
|
|
Range of voltage measurement
|
0-10v
|
|
Range of current measurement
|
0-20mA / 4-20mA
|
|
Switching of voltage / current mode
|
Software controlled
|
|
Resolution
|
16 bit
|
|
Protection of analog inputs
|
ESD , Transient
|
|
|
|
|
Isolated Analog input 0-24V
|
|
Number of analog inputs
|
4
|
|
Type of analog inputs
|
Isolated 3700 Vrms
|
|
Range of voltage measurement
|
0-24v
|
|
Resolution
|
16 bit
|
|
Protection of analog inputs
|
ESD , Transient
|
|
|
|
|
Isolated Analog input 0-20mA
|
|
Number of analog inputs
|
4
|
|
Type of analog inputs
|
Isolated 3700 Vrms
|
|
Range of current measurement
|
0-20mA / 4-20mA
|
|
Resolution
|
16 bit
|
|
Protection of analog inputs
|
ESD , Transient
|
|
Processor
|
|
Lx6 Microprocessor
|
32 bit
|
|
Clock Frequency
|
240 Mhz
|
|
STM32 Family
|
32 Bit
|
|
|
|
|
Wireless Communication
|
|
Wi-Fi
|
802.11 b/g/n/e/I (802.11n @ up to 150 Mbit/s
|
|
Bluetooth
|
V4.2 Bluetooth low Energy (BLE)
|
|
2G / 4G / LTE
|
UMTS/HSPA(+) and GSM/GPRS/EDGE / MIMO
|
|
Data Speed
|
|
|
4G/LTE
|
Max 150Mbs Down link / Max 50 Mbps Uplink
|
|
Edge
|
Max 256kbps Down link / Max 236.8 kbps Uplink
|
|
GPRS
|
Max 107kbps Down link / Max 85.6 kbps Uplink
|
|
Protocol
|
TCP / IP, JSON , MQTT , SSL , FTP, ReSTFUL
|
|
Security
|
WFA,WPA/WPA2 and WAPI
|
|
Wired Communication
|
|
Isolated RS485
|
|
|
Isolation
|
2500 Vrms
|
|
Duplex type / Protocol
|
Half Duplex / MODBUS RTU
|
|
Number of receivers on bus
|
32
|
|
Data rate
|
115 Kbps
|
|
Connector type
|
Screw connector A, B , GND
|
|
Ethernet 10/100 Mbps
|
|
|
Isolation
|
1500 Vrms
|
|
Protocol
|
MODBUS TCP
|
|
Connector Type
|
RJ45
|
|
USB
|
|
|
Chipset
|
FTDI
|
|
Baud rate
|
115kbps
|
|
Connector Type
|
USB B
|
|
|
|
|
Relay
|
|
No of Relay
|
1 x
|
|
Power Rating
|
5 Amps 250v
|
|
|
|
|
Zero Crossing Input
|
|
No of Channel
|
1 x
|
|
Frequency
|
50/60 Hz
|
|
Max Voltage AC
|
250V
|
|
|
|
|
Memory FRAM
|
|
Memory
|
25Kb
|
|
Write Cycle
|
1 Trillion
|
|
|
|
|
Memory SDCARD
|
|
Memory
|
8 GB
|
|
DATA Storing Format
|
CSV
|
|
|
|
|
Real Time Location (GPS)*
|
|
GPS Type
|
Multi – Constellation GNS GPS Receiver
|
|
Antenna mode
|
Active
|
|
Antenna Type
|
External Antenna
|
|
|
|
|
RTC
|
|
Battery Backup
|
3.3V
|
|
Accuracy
|
+/- 3.5ppm From -40 to +85 degree C
|
|
|
|
|
Supply voltage
|
|
Supply Input Voltage
|
12V / 24V
|
|
Permissible range, lower limit (DC)
|
9V
|
|
Permissible range, Upper limit (DC)
|
36V
|
|
|
|
|
Installation
|
|
Mounting
|
Wall / DIN Rail
|
|
Enclosure
|
IP20
|
|
|
|
|
Dimensions
|
|
Width
|
82 mm
|
|
Height
|
58.5 mm
|
|
Depth
|
155 mm
|
|
Weight
|
150 g
|
Application:
- Production and process monitoring
- Utilities monitoring
- Condition monitoring
- Environment monitoring
- Industrial Smart grid
- Solar grid
- Cold storage monitoring
- District metering
- Water treatment
- Generator monitoring
- Green House
RDL Plug and Play Configuration Manager:
At no extra cost every Dataloggger is shipped with Plug and Play Configuration Manager, that enable configuration of all Input-Output ports across Analog- Digital interfaces and also Communication parameter. Configuration Manager is designed to be operated with minimal training and technical expertise
 |
OEM & White label Service
RDL OEM (Original Equipment Manufacturer) that designs and builds a product based on their own specification, and then sells it to another company for branding and distribution.
OEM Minimum order quantity 100 to 500 no's.
|
CUSTOM SOLUTION DEVELOPMENT
Quick adaptability to any kind of customization requirements be it structural, functional, or Look-and-feel. Seamless transformation made possible for every possible aspects to tailor the standard products to realise your creative imagination.
|
 |
 |
DYNAMIC PROCESS SUPPORT
Highly Flexible, competitive, and economical solutions encompassing support for wide variety of business domains where customers are sure of getting delightful business deals.
|
Order Information Table
