Name: ESP32 IoT Development Trainer Kit
SKU: RDL814
Price: 8299 INR
Availability: InStock
Rating: 96 (11 reviews)

Email to a Friend

11 Review(s) | Add Your Review

Start Your IoT Journey Today..!

ESP32 IoT Development Trainer Kit essential development features a plug-and-play design that makes it easy for connections and helps Students, hobbyists, enthusiasts, and professionals to focus more on Program/application development. ESP32 IoT Trainer Kit equipped with onboard IO’s, communication interfaces & peripherals. It is really easy to design, experiment with, and test circuits without soldering. It’s used in many educational institutions and R&D LAB across the world.

ORDER CODE: RDL814

Availability: In stock

₹8,299.00

Qty:

Product Description
We Also Recommend
Related Products
Tags (0)
Reviews (11)

Product Description

ESP32 essential devolopment features a plug and play design that makes it easy for connections and helps students, hobbyists, enthusiasts and professionals to focus more on Program/application devolopment. ESP32 IoT Trainer Kit equipped with on board IO's,communication interfaces & peripherals. It is really easy to design, experiment with and test circuits without soldering.It's used in many educational institutions and R&D LAB across the world.

Board Features:

On Board Programming.
Plug & Play Interface Connectivity.
Professional EMI/RFI Complaint PCB Layout Design
Modular Block design makes Easy access & quick Prototyping
FRC connectivity features minimize the connection Error.
ROHS Compliant High Quality Grade PCB with wooden Enclosure.
Open-source Hardware ESP32 dual-core 32-bit up to 240 MHz, Flash 16 MB.
Supported most of the open-source platforms for Custom Programming
The device offers multiple industrial protocols like MODBUS RTU, MODBUS TCP, JSON, MQTT, and FTP and supports secure communication SSL.
Supported most of the cloud platforms including Microsoft Azure & AWS etc
OTA Firmware upgrade supported
On Board Programming.
Supported communication over USB, WiFi, Bluetooth, and Modbus RTU and RS232
Supported DC 12V Power Supply.
High Quality Grade PCB with wooden Enclosure.
8 interfacing LED’s.

1 * 4 Menu keypad.
4* 4 Matrix Keypad.
RS232, RS485, USB communication port.
7 Segment Multiplexed Display.
16*2 LCD & OLED Display
ADC & DAC Card.
8 bit 4 port IO.
On Board WiFi/Bluetooth Connectivity
3.3 to 5V Level Converter.
Power Supply 3.3V and 5V
SD CARD Interface.
RTC & EEPROM Interface.
DC Motor/ Stepper Motor Driver.
Relay, Buzzer.
1xTemperature Sensor.
3x Analog Test POT.

Scope of Learning Experiments:

LED blinking.

8 bit LED Left shift, Right shift and counting operation.

Keypad Interrupt Interface 6*2 LCD interface.

Matrix Keypad Interface.

ADC & DAC interface.

Traffic Light Signal Interface.

8 bit DIP switch interface.

7 Segment interface.

Multi processing using Dual core ESP32 Interfacing SD card and handling file system with esp32 using SPI and other method

Interfacing sensor with & Data parsing using RESTful & Json protocol

FTP Implementation

Interfacing sensor with ESP32 and MQTT protocol Implementation Exploring MQTT Features Subscribe & Publish methods

MQTT SSL certificate implementation - ESP32

Interfacing RS485 salve using MODBUS protocol

Interfacing BLE & Data parsing using RESTful/Json/MQTT protocol

OTA implementation - ESP32

Implementation of FREE RTOS on ESP32

Exploring DMA features of ESP32

Text to speech implementation

Device control through Speech recognition & Alexa Integration

Exploring WiFi- MESH features

BioMedical sensor kit integration and connecting IoT cloud platform for prediction

L298 Driver for DC Motor and Stepper motor interface.

Communication using UART, I2C, & SPI Buzzer, Relay interface.

RS485, RS232 serial communication.

ESP32 IO Interfacing with different sensor RTC DS1307I2C protocol interface.

AT24C04 EEPROM I2C protocol interface.

RF/WiFi Communication.

Temperature Sensor Interface.

Appliance control through cloud platform using MQTT protocol

Environment data like temp & humidity capturing using cloud platform

Modbus RTU Communication and accessing data from Industrial PLC

Wireless TCP/IP socket connection implementation using node and server architecture

Exploring OPC / UA server and client Implementation

Implementation of ESP32 WEB server application

Open Source Development Environment

Applications

Generic Low-power IoT Sensor Hubs
Cameras for Video Streaming
Generic Low-power IoT Data Loggers
Over-the-top (OTT) Devices
Speech Recognition
Image Recognition
Home Automation
Smart Building
Industrial Automation
Smart Agriculture
Audio Applications
Health Care Applications
WiFi enabled Toys
Wearable Electronics
Retail & Catering Applications

Support Most of the populer cloud Platform
Quick Idea to Proof of Concept (POC)

Specification

MCU

ESP32-D0WD-V3 embedded, Xtensa® dual-core 32-bit LX6 microprocessor, up to 240 MHz
448 KB ROM for booting and core functions
520 KB SRAM for data and instructions
16 KB SRAM in RTC
4 MB SPI flash

Wi-Fi

802.11b/g/n
Bit rate: 802.11n up to 150 Mbps
A-MPDU and A-MSDU aggregation
0.4 µs guard interval support
Center frequency range of operating channel: 2412 ~ 2484 MH

Bluetooth® / BLE

Bluetooth V4.2 BR/EDR and Bluetooth LE specification
Class-1, class-2 and class-3 transmitter
AFH
CVSD and SBC

Hardware:

Interfaces: SD card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, IR, pulse counter, GPIO, capacitive touch sensor, ADC, DAC, Two-Wire Automotive Interface

Communication Interface : RS232 , RS485 ( Modbus RTU ) , USB , SPI , I2C .

On Board Peripheral : OLED Display , 16x2 LCD Display,Seven Segment Display ,8x LED , 4x4 Hex Keypad , 1x4 Menu Keypad ,Xbee Adapter, 3.3 to 5v Level Converter, SD CARD Interface, RTC & EEPROM, DC Motor / Stepper Motor Driver, Relay, Buzzer,1xTemperature Sensor,3x Analog Test POT ,8x Selection DIP Switch

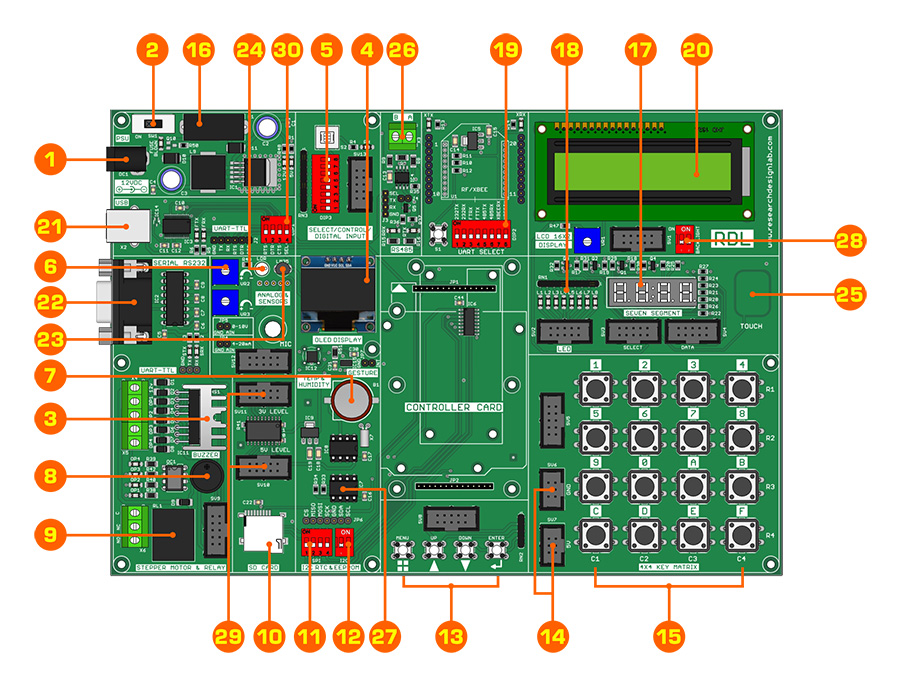

ESP-32 Board Narration

Power Supply
Power ON Switch
Heat Sink
ADC (Variable Resistor POT)
OLED Display
Digital Input Switch Display RTC Battery
Buzzer

Relay
SD Card Holder
Jumper Settings for I2C RTC
Jumper Settings for EEPROM
1*4 Keypad Switches
4*4 Keypad Matrix
RDL Bus FRC Connector
ESP32 Controller

7 Segment Display
2*4 LED's
16*2 LCD Display
Jumper Settings for UART TTL
USB Port
DB-9 Serial Female Connector
Jumper Settings for UART Selection Pin
WiFi Module Selection Pin

Wiring Diagram:

Package Includes

Development Board with Wooden Enclosure
USB Cable
12V 2A Adapter
FRC Cable

4G/LTE Communication Module
Order Code: RDL876

Features:

4G/LTE	Max 150Mbs Down link / Max 50 Mbps Uplink
Edge	Max 256kbps Down link / Max 236.8 kbps Uplink
4G/LTE Chipset	Qualcomm MDM9207, ARM Cortex A7 1.3 GHz
Protocol	TCP / IP, JSON, MQTT, SSL, FTP, RESTful
Security	WFA,WPA/WPA2 and WAPI

Application:

Renewable Monitoring System

Asset Tracking

Digital Signage

Fixed Wireless Access

Automation

Smart Grid & Meter

Telehealth

Paymeny Terminal

Cloud PLC
Order Code: RDL826

Features:

4x Isolated Analog input 0-24V

6x isolated Digital input 24V

4x Isolated digital output/PWM

Working Voltage 24V

2x Relay ( NO & C)

1x Isolated RS485

DS3231 RTC

Application:

Production and process monitoring.

Utilities monitoring.

Condition monitoring.

Environment monitoring.

Industrial Smart grid

Leakage detection.

Cold storage monitoring.

District metering.

WiFi Relay 30A
Order Code: RDL877

Features:

Controller ESP32 Bit Dual Core 32 Bit 240 MHz 16MB

1x RTC

1x Current Sensor

1x 30 Amps Relay

On Board WiFi & Bluetooth

On Board Power Supply

100-270VAC 50/60Hz

Application:

Home Automation

Alarms

Relay Timer Enabled

Open Wall control

Vending machine

Diy Automated Plant Monitoring
Order Code: RDL878

Package Includes:

ESP32 IoT Trainer Kit with Wooden Enclosure USB Cable

12V 2A Adapter

FRC Cable

1x IoT Module RDL 865

2x Soil Moisure Sensor

2x Valve

3x 1Meter Drip Irrigation Pipe

DIY Condition Monitoring System
Order Code: RDL879

Package Includes:

ESP32 IoT Trainer Kit with Wooden Enclosure USB Cable

12V 2A Adapter

FRC Cable

1x IoT Module RDL 865

1x Vibration Sensor

1x Vibration Sensor

Temprature Sensor 4-20m Amps

DIY Andon
Order Code: RDL880

Package Include

ESP32 IoT Trainer Kit with Wooden Enclosure

USB Cable

12V 2A Adapter

FRC Cable

IoT Edge Io Module RDL857

1x Event Input Box

1x Tower Light

Documents:

Drivers:

ESP32 Sample Codes :
