AIoT Development Trainer Kit - Raspberry Pi 5

Name: AIoT Development Trainer Kit - Raspberry Pi 5
SKU: RDL927
Price: 23499 INR
Availability: InStock
Rating: 92 (2 reviews)

Email to a Friend

2 Review(s) | Add Your Review

AIoT Development Trainer kit - Raspberry Pi 5 essential development features a plug - and - play design that makes it easy for connections and helps Students, hobbyists, enthusiasts and professionals to focus more on Program/application development. AIoT Development Trainer kit - Raspberry Pi 5 equipped with onboard IO's, communication interfaces & peripherals. It is really easy to design, experiment with, and test circuits without soldering. It's used in many educational institutions and R&D LAB across the world..

ORDER CODE: RDL927

Availability: In stock

₹23,499.00

*Category

* Required Fields

₹23,499.00

Qty:

Product Description
Related Products
Tags (0)
Reviews (2)

Product Description

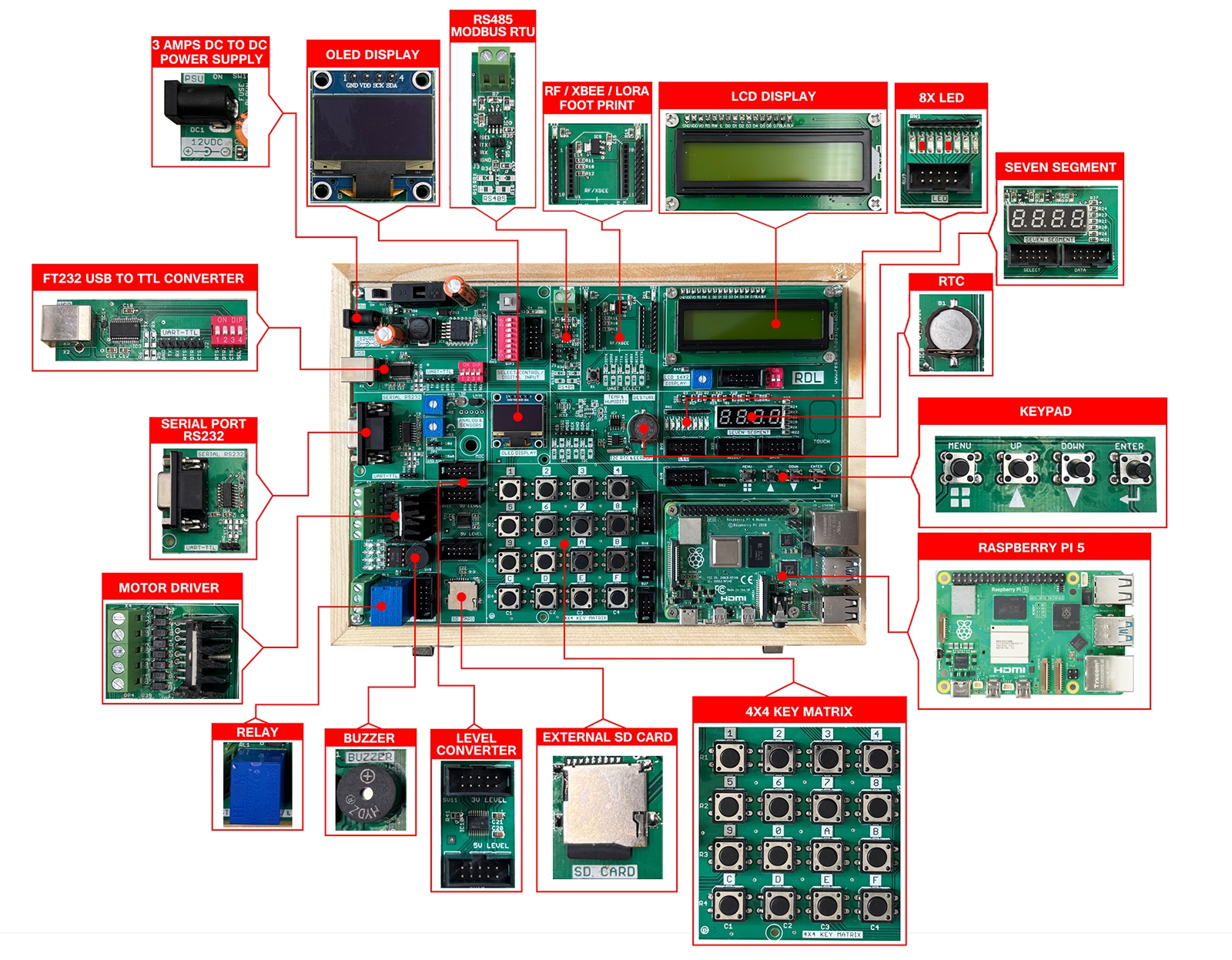

Board Features:

Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches and a 2MB shared L3 cache
Video Core VII GPU, supporting OpenGL ES 3.1, Vulkan 1.3
Dual 4Kp60 HDMI® display output with HDR support
4Kp60 HEVC decoder
LPDDR4X-4267 SDRAM (4GB, 8GB, and 16GB)
Dual-band 802.11ac Wi-Fi®
Bluetooth 5.0 / Bluetooth Low Energy (BLE)
microSD card slot, with support for high-speed SDR104 mode
2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
2 × USB 2.0 ports
Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)
2 × 4-lane MIPI camera/display transceivers
PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
5V/5A DC power via USB-C, with Power Delivery support
Raspberry Pi standard 40-pin header
Real-time clock (RTC), powered from external battery
Power button

Applications

Genetic Low - power IoT Sensor Hub.
Genetic Low - power IoT Dataloggers.
Cameras for Video Streaming.
Over-the-top (OTT) devices.
Speech Recognition.
Image Recognition.
Mesh Network.
Home Automation.
Smart Building.
Industrial Automation.
Smart Agriculture.
Audio Applications.
Health Care Applications.
Wi-Fi Enabled Toys.
Wearable Electronics.
Retail & Catering Applications.

Scope of Learning Experiments

LED blinking.
8 bit LED Left shift, Right shift and counting operation.
Keypad interrupt interface.
6*2 LCD interface.
Matrix Keypad Interface.
Traffic light signal interface.
8 bit DIP switch interface.
L298 Driver for DC Motor and Stepper motor interface.
Communication using UART, I2C & SPI.
Buzzer, Relay interface.
RS485, RS232 serial communication.
RPI 5 IO interfacing with different sensor.
RTC DS1307I2C protocol interface.
AT24C04 EEPROM I2C protocol interface.
Wi-Fi Communication.
Interfacing SD card and handling file system.
Interfacing sensor with & Data parsing using RESTful & Json protocol.
FTP Implementation.
Interfacing sensor with RPI 5 and MQTT protocol implementation.
Exploring MQTT features subscribe & publish methods.
MQTT SSL certificate implementation - RPI 5.
Interfacing RS485 salve using MODBUS protocol.
Interfacing BLE & Data parsing using RESTful / Json / MQTT protocol.
Text to speech implementation.
Device control through speech recognition & alexa integration.
Appliance control through cloud platform using MQTT protocol.
Environment data like temp & humidity capturing using cloud platform.
Modbus RTU communication and accessing data from Industrial PLC.
Wireless TCP / IP socket connection implementation using node and server architecture.
Biomedical sensor kit integration and connecting IoT cloud platform for prediction.
Implementation of RPI 5 WEB server application.
