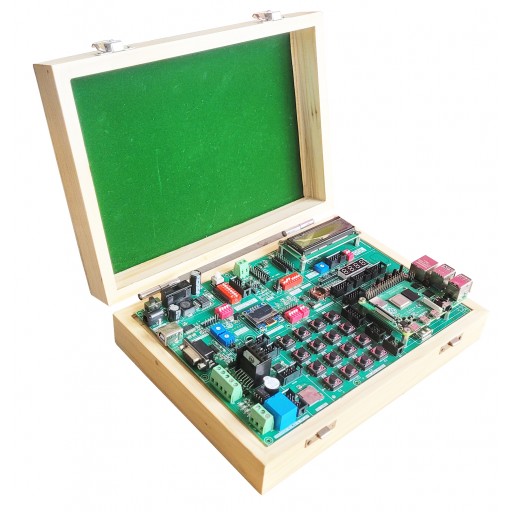

Name: RPI 4 Model B IoT Trainer Kit
SKU: RDL922
Price: 16920 INR
Availability: InStock
Rating: 88 (1 reviews)

Product Description

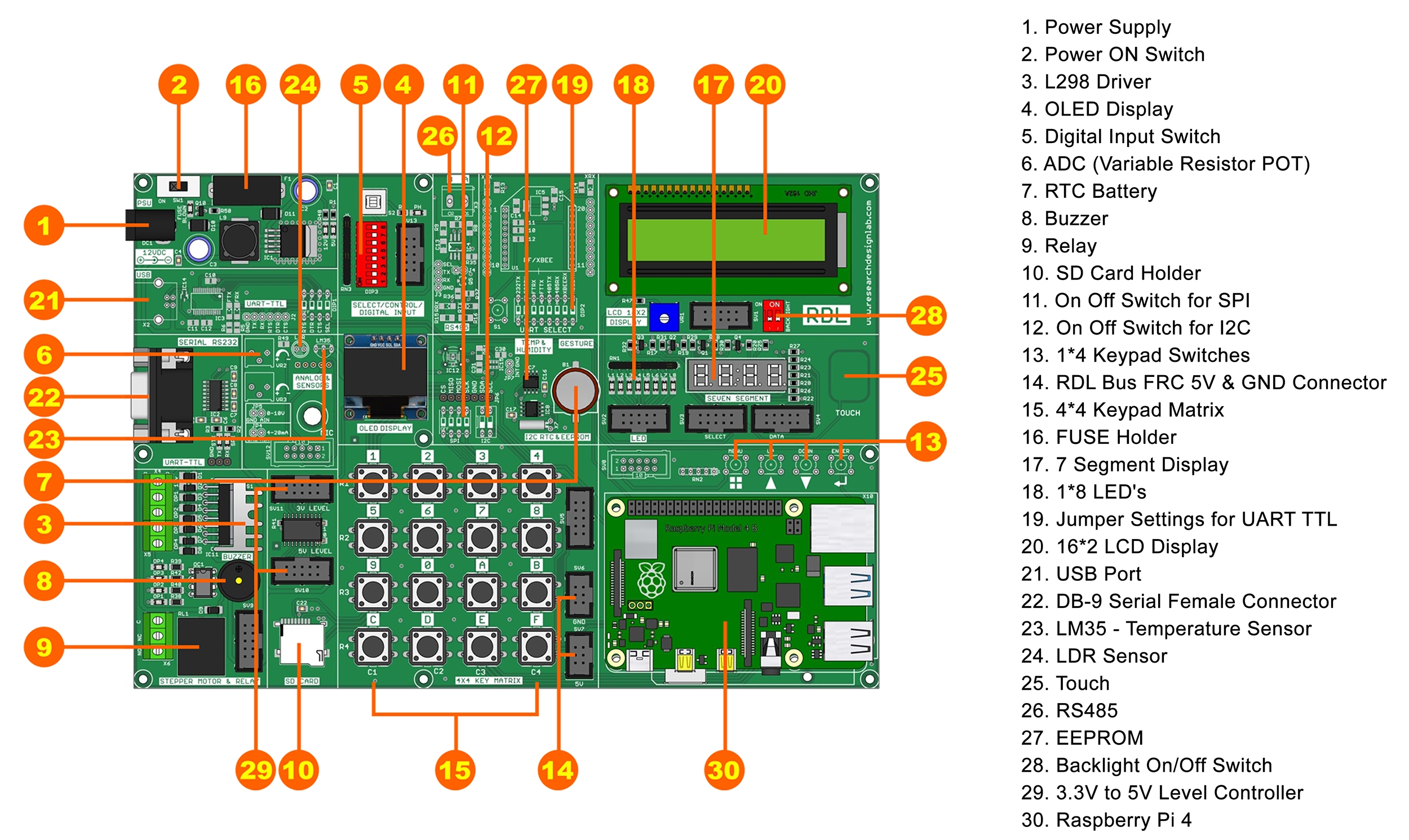

Board Features:

Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
4GB LPDDR4 SDRAM
2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless LAN, Bluetooth 5.0, BLE
True Gigabit Ethernet
2x USB 3.0 ports, 2x USB 2.0 Ports
Fully backwards compatible 40-pin GPIO header
2x Micro HDMI ports supporting up to 4K 60Hz video resolution
2-lane MIPI DSI/CSI ports for camera and display
4-pole stereo audio and composite video port
MicroSD card slot for loading operating system and data storage
Onboard 5.1V, 3A power via USB-C or GPIO
On Board Programming.
Plug & Play Interface Connectivity.
Professional EMI/RFI Complaint PCB Layout Design
Modular Block design makes Easy access & quick Prototyping
FRC connectivity features minimize the connection Error.
ROHS Compliant High Quality Grade PCB with wooden Enclosure.
Open-source Hardware RPI 0 single-core 32-bit up to 240 MHz, Flash 16 MB.
Supported most of the open-source platforms for Custom Programming
The device offers multiple industrial protocols like MODBUS RTU, MODBUS TCP, JSON, MQTT and FTP and supports secure communication SSL.
Supported most of the cloud platforms including Microsoft Azure & AWS etc
OTA Firmware upgrade supported
On Board Programming.
Supported communication over USB, WiFi, Bluetooth, and Modbus RTU and RS232
Supported DC 12V Power Supply.
1 * 8 interfacing LED’s.
1 * 4 Menu keypad.
4 * 4 Matrix Keypad.
RS232, RS485, USB communication port.
7 Segment Multiplexed Display.
16*2 LCD & OLED Display
On Board Wi-Fi/Bluetooth Connectivity
3.3 to 5V Level Converter.
Power Supply 3.3V and 5V
SD CARD Interface.
RTC & EEPROM Interface.
DC Motor/ Stepper Motor Driver.
Relay, Buzzer.
High Quality Grade PCB with wooden Enclosure.

Applications

Genetic Low - power IoT Sensor Hub.
Genetic Low - power IoT Dataloggers.
Cameras for Video Streaming.
Over-the-top (OTT) devices.
Speech Recognition.
Image Recognition.
Mesh Network.
Home Automation.
Smart Building.
Industrial Automation.
Smart Agriculture.
Audio Applications.
Health Care Applications.
Wi-Fi Enabled Toys.
Wearable Electronics.
Retail & Catering Applications.

Scope of Learning Experiments

LED blinking.
8 bit LED Left shift, Right shift and counting operation.
Keypad interrupt interface.
6*2 LCD interface.
Matrix Keypad Interface.
Traffic light signal interface.
8 bit DIP switch interface.
L298 Driver for DC Motor and Stepper motor interface.
Communication using UART, I2C & SPI.
Buzzer, Relay interface.
RS485, RS232 serial communication.
RPI4 IO interfacing with different sensor.
RTC DS1307I2C protocol interface.
AT24C04 EEPROM I2C protocol interface.
Wi-Fi Communication.
Interfacing SD card and handling file system.
Interfacing sensor with & Data parsing using RESTful & Json protocol.
FTP Implementation.
Interfacing sensor with RPI 4 and MQTT protocol implementation.
Exploring MQTT features subscribe & publish methods.
MQTT SSL certificate implementation - RPI 4.
Interfacing RS485 salve using MODBUS protocol.
Interfacing BLE & Data parsing using RESTful / Json / MQTT protocol.
Text to speech implementation.
Device control through speech recognition & alexa integration.
Appliance control through cloud platform using MQTT protocol.
Environment data like temp & humidity capturing using cloud platform.
Modbus RTU communication and accessing data from Industrial PLC.
Wireless TCP / IP socket connection implementation using node and server architecture.
BioMedical sensor kit integration and connecting IoT cloud platform for prediction.
Implementation of RPI 4 WEB server application.
