Features:
-
On Board Programming.
- Plug & Play Interface Connectivity.
- Professional EMI/RFI Complaint PCB Layout Design.
- Modular Block design makes Easy access & quick Prototyping.
- FRC connectivity features minimize the connection Error.
- ROHS Compliant High Quality Grade PCB with wooden Enclosure.
- Open-source Hardware ESP32 dual-core 32-bit up to 240 MHz, Flash 16 MB.
- Supported most of the open-source platforms for Custom Programming.
- The device offers multiple industrial protocols like MODBUS RTU, MODBUS TCP, JSON, MQTT and FTP and supports secure communication SSL.
- Supported most of the cloud platforms including Microsoft Azure & AWS etc.
- OTA Firmware upgrade supported.
- On Board Programming.
- Supported communication over USB, WiFi, Bluetooth, Modbus RTU & RS232.
- Supported DC 12V Power Supply.
- High Quality Grade PCB with wooden Enclosure.
- On Board Sensor - LDR, Temperature, Gesture & Sound Sensors.
Applications:
- Generic Low-power IoT Sensor Hubs.
- Cameras for Video Streaming.
- Generic Low-power IoT Data Loggers.
- Over-the-top (OTT) Devices.
- Speech Recognition.
- Image Recognition.
- Home Automation.
- Smart Building.
- Industrial Automation
- Smart Agriculture
- Audio Applications
- Health Care Applications
- WiFi enabled Toys
- Wearable Electronics
- Retail & Catering Applications
Scope of Learning Experiments:
- LED blinking.
- 8 bit LED Left shift, Right shift and counting operation.
- Keypad Interrupt Interface 6*2 LCD interface.
- Matrix Keypad Interface.
- ADC & DAC interface.
- Traffic Light Signal Interface.
- 8 bit DIP switch interface.
- 7 Segment interface.
- Multi processing using Dual core ESP32 Interfacing SD card and handling file system with esp32 using SPI and other method.
- Interfacing sensor with & Data parsing using RESTful & Json protocol.
- FTP Implementation.
- Interfacing sensor with ESP32 and MQTT protocol Implementation Exploring MQTT Features Subscribe & Publish methods.
- MQTT SSL certificate implementation - ESP32.
- Interfacing RS485 salve using MODBUS protocol.
- Interfacing BLE & Data parsing using RESTful/Json/MQTT protocol.
- OTA implementation - ESP32.
- Implementation of FREE RTOS on ESP32.
- Gesture (APDS 9960) & Touch Sensor Implementation.
- Text to speech implementation.
- Device control through Speech recognition & Alexa Integration.
- Exploring WiFi- MESH features.
- BioMedical sensor kit integration and connecting IoT cloud platform for prediction.
- L298 Driver for DC Motor and Stepper motor interface.
- Communication using UART, I2C, & SPI Buzzer, Relay interface.
- RS485, RS232 serial communication.
- ESP32 IO Interfacing with different sensor RTC DS1307I2C protocol interface.
- AT24C04 EEPROM I2C protocol interface.
- Bluetooth Classic, BLE & Wi-Fi Communication.
- Temperature & Humidity Sensor Interface - AHT21B.
- Appliance control through cloud platform using MQTT protocol
- Environment data like temp & humidity capturing using cloud platform
- Modbus RTU Communication and accessing data from Industrial PLC
- Wireless TCP/IP socket connection implementation.
- Snake & Starwar game
- Exploring OPC / UA server and client Implementation
- Implementation of ESP32 WEB server application

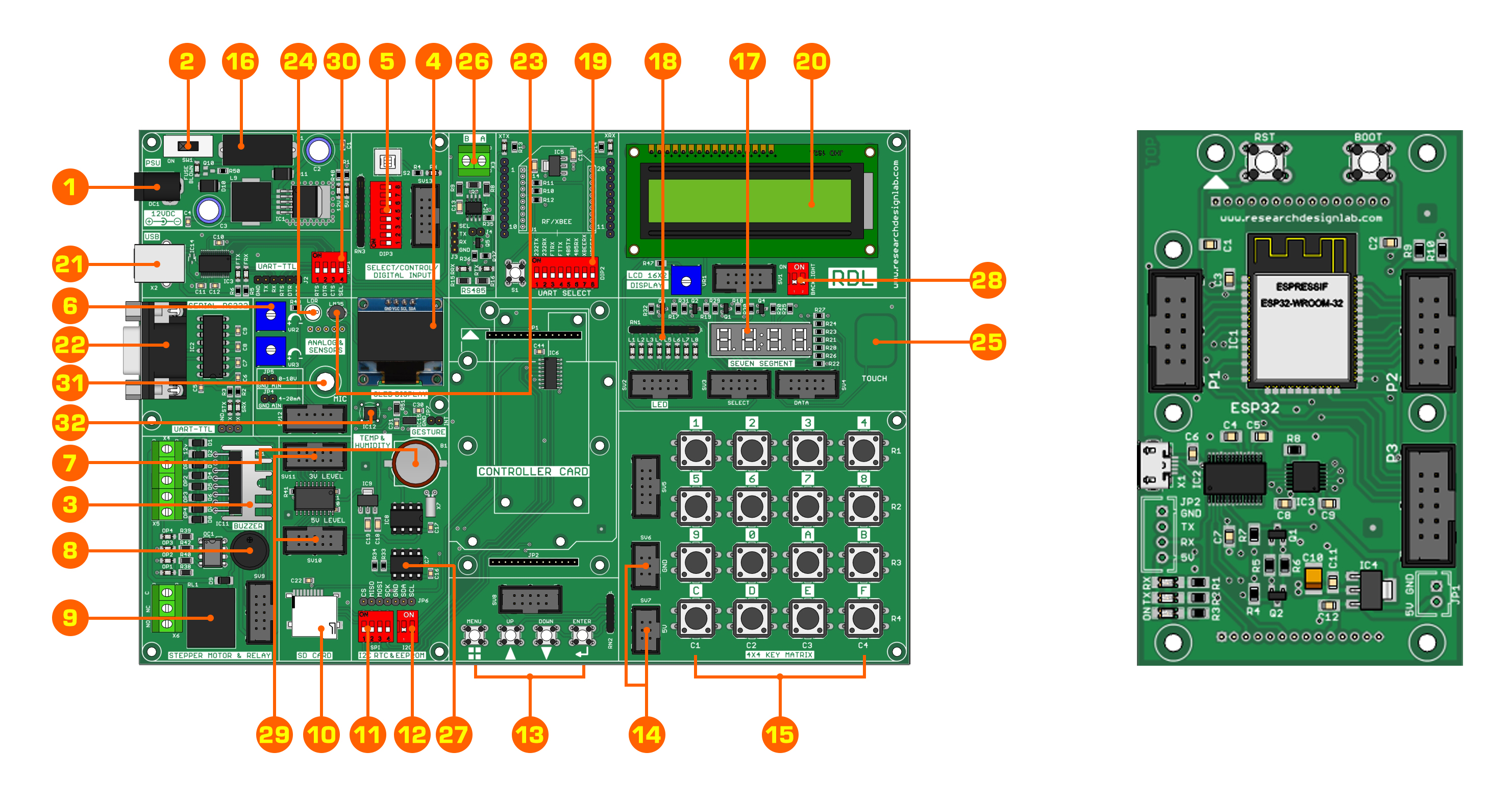

Iot Discovery Kit Narration:
1. Power Supply
2. Power ON Switch
3. L298 Driver
4. OLED Display
5. Digital Input Switch
6. ADC (Variable Resistor POT)
7. RTC Battery
8. Buzzer
9. Relay
10. SD Card Holder
11. On Off Switch for SPI |
12. On Off Switch for I2C
13. 1*4 Keypad Switches
14. RDL Bus FRC 5V & GND Connector
15. 4*4 Keypad Matrix
16. FUSE Holder
17. 7 Segment Display
18. 1*8 LED's
19. Jumper Settings for UART TTL
20. 16*2 LCD Display
21. USB Port
22. DB-9 Serial Female Connector
|
23. LM35 - Temperature Sensor
24. LDR Sensor
25. Touch
26. RS485
27. EEPROM
28. Backlight On/Off Switch
29. 3.3V to 5V Level Controller
30. Comport Handshaking Signal DIP Switch
31. MIC
32. Temperature & Humidity Sensor
|
