Downloads

• 8 Relay Bluetooth Switch application
• Bluetooth Terminal application
• Bluetooth Remote Controller
• Bluetooth App Controlled ROBO
• RDL Bluetooth Speech

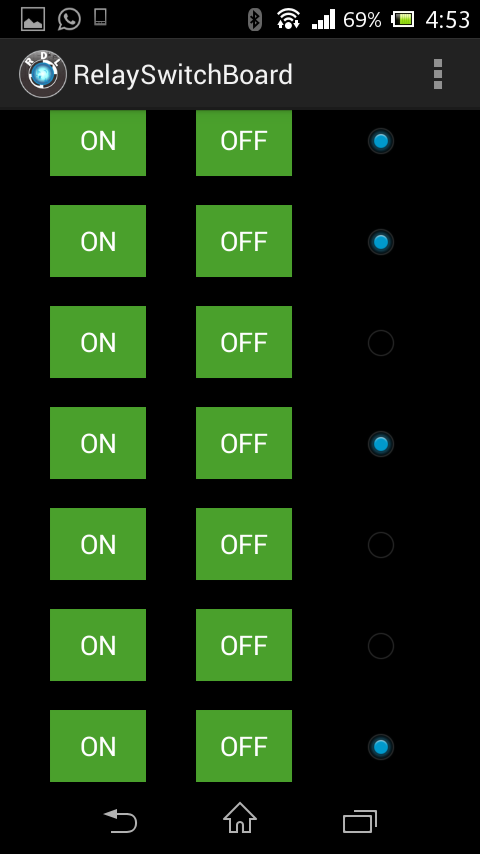

8 Relay Bluetooth Switch application

This app acts as a remote controller for controlling the appliance via Bluetooth enabled Android devices. It enables to control eight appliances (ON / OFF).

Features:

1. Support Bluetooth Serial Port Profile, SPP
2. It can control max eight devices.
3. The minimum version of Android OS required for this app is Icecream Sandwich(4.0 API).
4. When the button is pressed On it sends value: 1N , when button is pressed OFF it sends value: 1F
SW1 -> ON ………> 1N
SW1 -> OFF ………> 1F
SW2 -> ON ………> 2N
SW2 -> OFF ………> 2F
………. ………
SW8 -> ON ………> 8N
SW8 -> OFF ………> 8F

Download

--------------------------------------------------

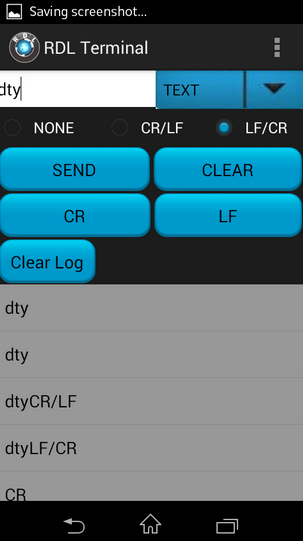

Bluetooth Terminal

• Bluetooth terminal which enables the communication between android phone and Bluetooth terminal devices
• You can simply send the required command to remote Bluetooth terminal by typing and selecting the options like ASCII , HEX , TEXT followed by line feed ( LF ) & Carriage return ( CR ). This terminal also receives the data from the remote terminal and displays on the screen.

  Features:
  1. Support Bluetooth Serial Port Profile, SPP
  2. Displays sent and received data
  3. Displays log data in ASCII, Hex or Text format
  4. Send the data with CR/LF code
  5. The minimum version of Android OS required for this app is Icecream Sandwich(4.0 API)




Download

--------------------------------------------------

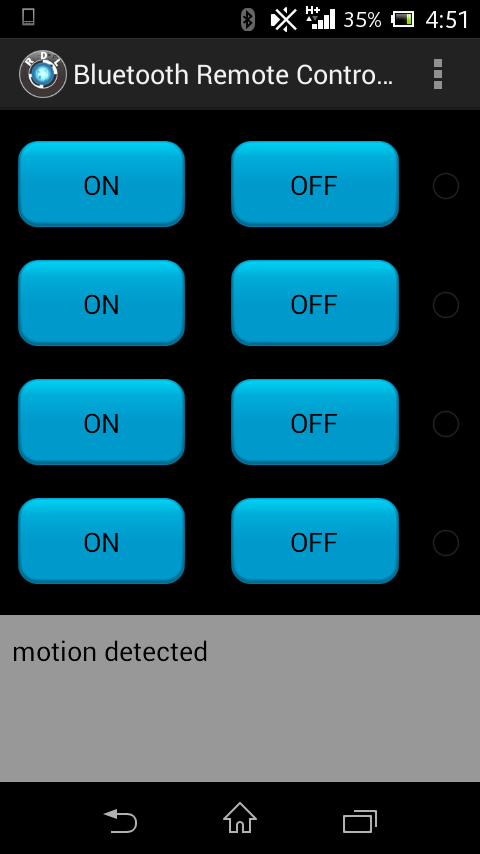

BLUETOOTH REMOTE CONTROLLER

• This app acts as a remote controller for controlling the remote appliance via Bluetooth enabled Android devices.

• It enables to control four maximum appliance (ON / OFF) , also can able to receive the data from the remote terminal( i.e. Temperature , motion , etc ) .

  Features:
  1. Support Bluetooth Serial Port Profile, SPP
  2. It can control max four devices.
  3. Displays log data in Text format
  4. The minimum version of Android OS required for this app is Icecream Sandwich(4.0 API).

Download

----------------------------------------------------------------------

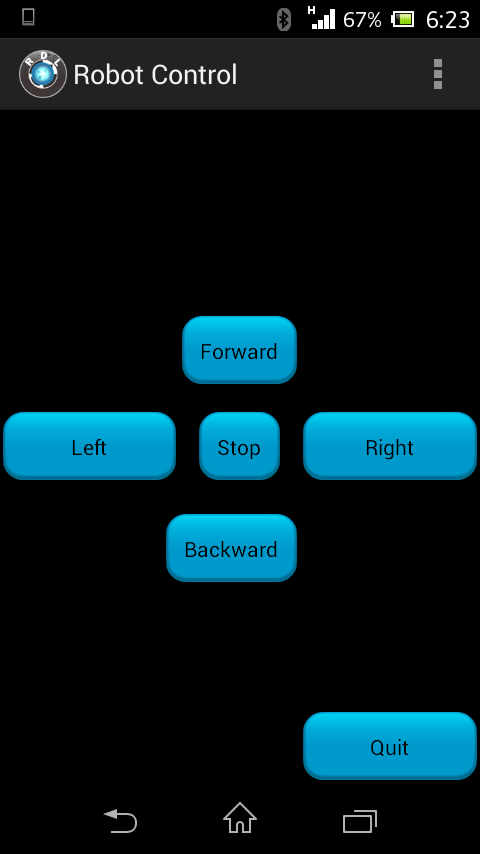

BLUETOOTH APP CONTROLLED ROBO

• Use your Android phone to control a robot via Bluetooth and drives it like an RC car. It controls the direction of a Robot, and also allows rotating clockwise and counter-clockwise.

• It controls the direction of a Robot, and also allows rotating clockwise and counter-clockwise. The Robot Control app works like a joystick. Press the buttons FORWARD, BACKWARD for acceleration and moving forward and backward. Left and Right buttons to move left and right, and a Mid button to stop the robot. The quit button exits you from the app successfully. The app will be able to run on android devices with Icecream Sandwich and higher versions.

  The following data will be transmitted via Bluetooth while performing below given Button press event.

  Forward ->>> 1
  Backward ->>> 2
  Left ->>> 3
  Right ->>> 4
  Stop ->>> 5

Download

---------------------------------------------

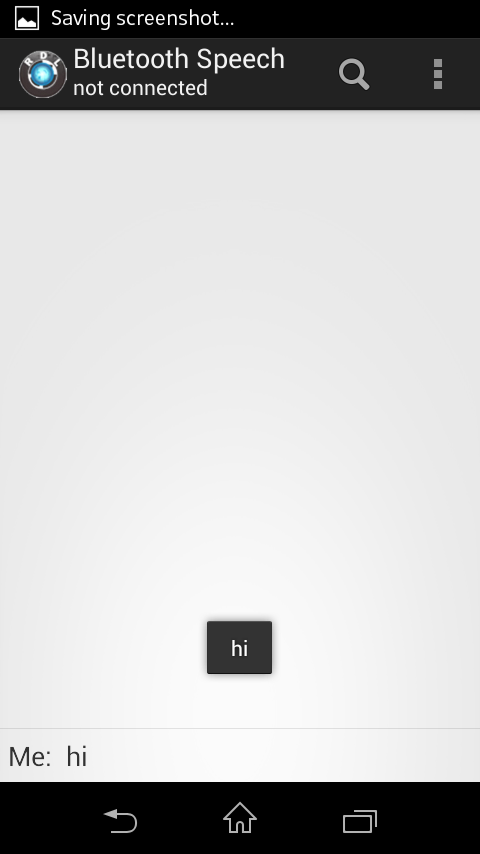

RDL BLUETOOTH SPEECH

• Uses android mobiles internal voice recognition to pass voice commands to your robot
  Pairs with Bluetooth Serial Modules and sends in the recognized voice as a string
  for example if you say Hello the android phone will return a sting Hello to your bluetooth module can Be used with any micro controller which can handle strings.

Download

-----------------------------------------------------
